| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

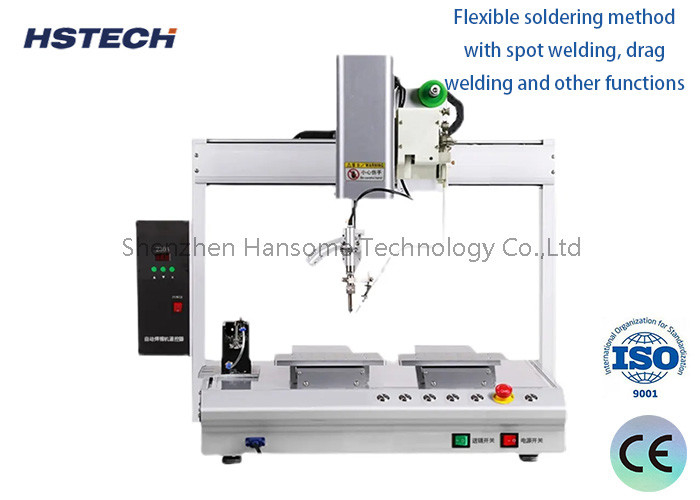

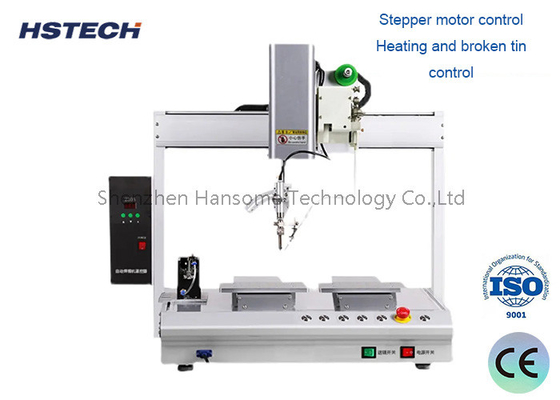

High Quality Desktop automatic 6 axis dip soldering robot PCB solder machine
Introduction
This automatic desktop type soldering machine is a hot sale product, which using the teaching box for manual programing, adopt the high quality stepper motor and timing belt to driving the machine. The machine has the options for single or doulbe working station, also the traveling range standard is 300*300mm, it can be customized to fit customer's product requirement.
Application
1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
5, precision machinery/electrical products :VTR.
Features
1.Up and down running using the step motor driving the ball screw, precision is up to 0.1mm, welding depth is accurate.
2.Up&down speed and the welding angle are adjustable,which decrease the surface tension, fulfill the technique requirement.
3.Automatic clear the solder oxide to the solder splash pot every work cycle,improve the welding quality.
4.Welding time, 1s-10s can be adjustable.
5.Soldering pot applies to the special thicky stainless steel, temperature controller applies to the K-thermocouple.
6.Suitable for the small quantity production.
7. With tri-color light, when over set temp. It will alarm and red light.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
