| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

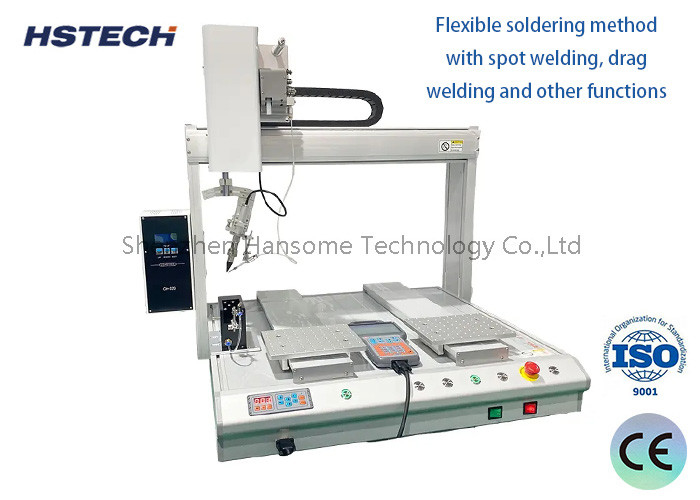

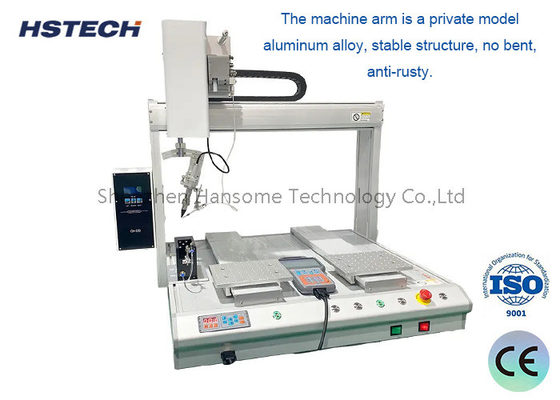

High-precision Auto Soldering Robot with Hiwin Linear Guide
Introduction
The rotatable automatic soldering machine is multi-functional, it can adjust the welding angle, direction and set the solder joints at will, control the amount of tin in and out, control the size of the solder joints, and better ensure the welding process requirements of customers' products. In addition to the ordinary XYZ axis, the machine also has an independent stepper motor controlled tin feeding axis, and a rotating axis that can rotate 360° in all directions. We call it the R axis. Its main function is it It can effectively avoid the influence of high components on various PCB boards and objects such as chips, wires or terminals on the moving space of the circuit board, and can adjust the welding angle, tin tube and needle tip at will. The tin wire can be accurately sent to the soldering iron tip to match the customer's product, and the tin surface can be properly melted to avoid tin stuck due to various reasons during the soldering process.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
We have a lot of series of products about soldering machine, if you want to know more about our products, please feel free to contact us, we will recommend suitable products to you with professional product knowledge.
