Automatic Soldering Robot with Nitrogen-free Soldering Iron for General Consumer Goods
Features
1. 4-axis operation, X/Y/Z and R rotation movement, achieving multi angle welding.

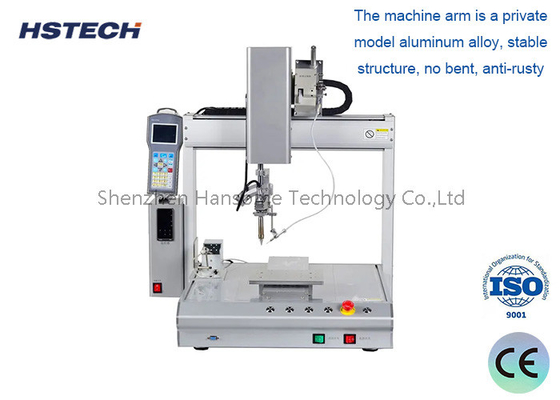

2. The machine has an automatic cleaning function, and the soldering iron/tip does not contain nitrogen, which is very safe and environmentally friendly,
3. The Taiwan brand Haiwen linear guide rail is used for machine tool movement systems, with high precision and precision.
4. Using highly mature control boards to create machine control systems, PLC can also be used.
5. Align the key position of the product with the iron head as the base point, press the enter key, and the program will automatically generate the point in the system, and then set the data of the point.
6. Adopting high-precision stepper motors and synchronous belt drive systems, advanced motion control algorithms, effectively improving motion positioning accuracy and repeatability.
7. This machine has an automatic cleaning function, which can make soldering processing more stable and extend the service life of soldering iron.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |

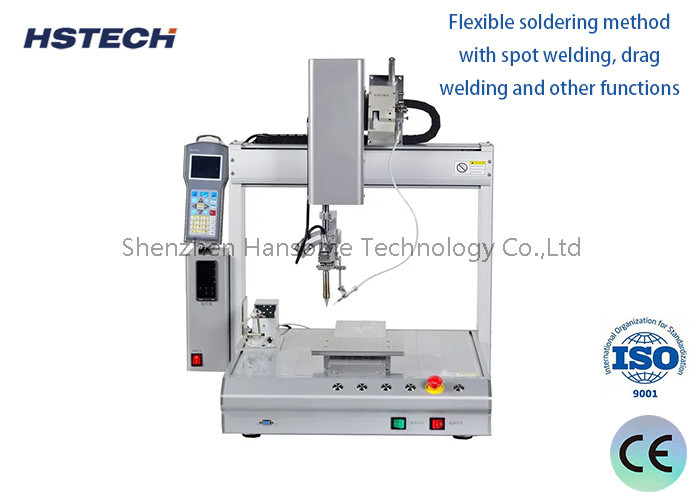

| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
Safety Precaution
1,Please do not repair and debug the electrical system by non-professionals, which will reduce the safety performance of the equipment, expand the failure, and even cause personal injury and property damage.
2,When the machine is working, it is forbidden to touch any moving parts or open the control equipment, otherwise it may cause personal injury or cause the machine to not work properly.
3,It is forbidden to work this equipment in damp, dust, corrosive gas, flammable and explosive gas places, otherwise it may cause electric shock or fire.
4,The input voltage supported by the control system is: 24VDC.
5,The machine must be grounded reliably, otherwise it may cause damage to the machine.
6,The operating environment of the robot is: good ventilation, sanitation, temperature 0~40°C, humidity 20%~95%(non-condensing)
7,Do not attempt to touch the tip of the soldering iron until it has cooled completely.
8,Please be careful when transporting, when the machine is subjected to large vibration or shock, itmay cause machine failure or affect machine accuracy.
9,When the machine is not used for a long time, please turn off the power.
10,If the machine fails, turn off the power immediately and contact your distributor or machine manufacturer.
