| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

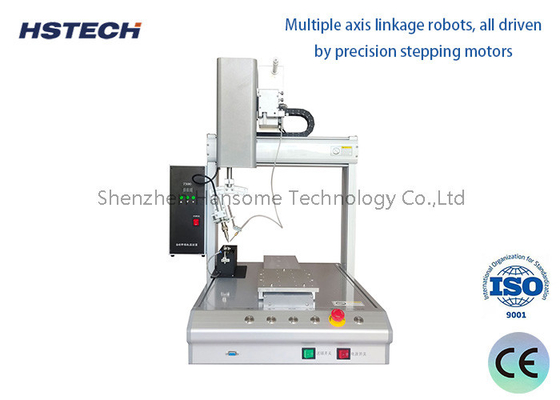

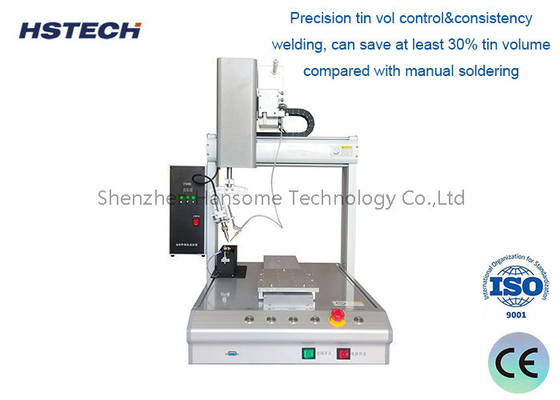

Nitrogen-Free Soldering Machine for Semiconductor and Optical Products
Introduction
Three-axis solder machines USB circuit board automatic spot welding tin feeding robot.
Application
1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
Features
1.Contains BASIC interpreter, simple programming, direct handle teaching, you can directly enter the welding point coordinates, but also teach welding position, can reproduce the welding position coordinates.
2.Using multi-axis robots and advanced motion control algorithms for linkage to simulate the action of human hand plus tin, effectively improving the positioning accuracy of the iron head.
3.The program has built-in multi-dimension soldering method, spot welding and drag welding. All process parameters can be set by the user. It can simulate various difficult and micro soldering processes of human hands.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
