Solder Paste Warm Up Machine With LED Display Time Controller & FIFO Function

Solder Paste Warm Up Machine With LED Display Time Controller & FIFO Function

Brand Name: HSTECH
Model Number: HS-SP-4N
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
New Solder Paste Thawing Machine
Warranty:
1 Year
Control:
Touch Screen
PLC:
MITSUBISHI
Relay Brand:
Schneider
Optoelectronic Switch:
OMRON
Material:
Aluminum Alloy
Condition:
New
Signal:
SMEMA
Application:
Electronic Assembly
Color:
Silver
Control System:
PLC
OEM/ODM:
Available
Power Consumption:
200W
Power Supply:
AC220V
Type:
Automatic
Packaging Details:
Wooden package
Supply Ability:
100 sets per month
Product Description



Solder Paste Warm Up Machine With LED Display Time Controller & FIFO Function


Product Description

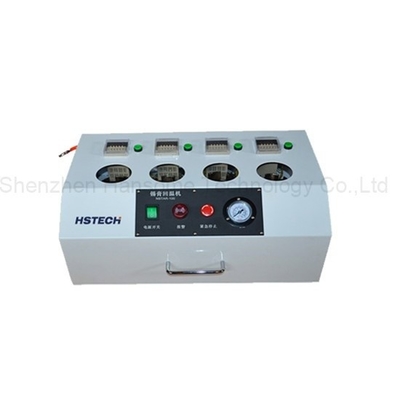

SOLDER PASTE WAKE-UP MACHINE
Solder Paste Warm-up Timer Machine can easily achieve the control of the solder paste temperature warm up time, which can save much time to record the time of solder paste back to the ambient temperature after take out off the refrigerated room. This is an efficiency way to control the temperature of the solder paste, make sure the activity of the solder paste, ensure the printing quality, better to control the production plan, improve production efficiency.


Specification

Product name Solder paste thawing machine
Model HS-SP-4N
Power supply AC110V/220V, 50/60Hz
Air pressure 0.4Mpa
Working cans 4 tank
Machine dimension 500*300*230mm
Weight 16kg



Features

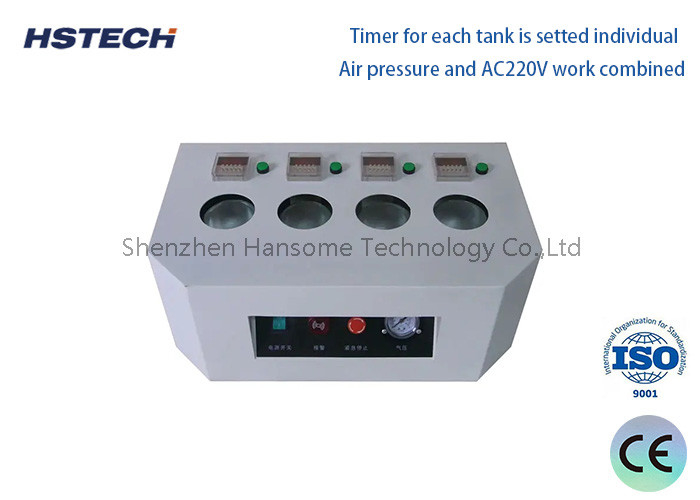

1, Each tank of solder paste placement slot has an independent LED display time controller. After setting the time the solder paste will be fixed in the tank and sink automatically,also it will release automatically when time is over.

2. With FIFO function.

3. In the case of out of power accidently,even if not reach setted time, solder paste bottle will automatically pop up.

4. Equipped with a automatic alarm system,when reach the setting time, this machine will automatically alarm. Also there is a emergency stop button for emergency suitation, easy operation and security.

5,This automatic solder paste warm up machine has 4 tanks,can warm up 4 bottles paste at the same time,if need more tanks, can be customized.

Solder Paste Warm Up Machine Functional use

one machine with multiple grooves, multiple bottles of solder paste can be reheated at the same time, intelligent temperature return, effective control of solder paste rewarming time, ensuring the activity of solder paste, appearance of baking paint, smooth, neat and neat appearance.
Note: In the case of sudden power failure, if the set time has not been reached, the solder paste bottle will automatically pop up.

Solder Paste Warm Up Machine With LED Display Time Controller & FIFO Function 0
Solder Paste Warm Up Machine With LED Display Time Controller & FIFO Function 1

Solder Paste Warm Up Machine With LED Display Time Controller & FIFO Function 2

Solder Paste Warm Up Machine With LED Display Time Controller & FIFO Function 3

Solder Paste Warm Up Machine With LED Display Time Controller & FIFO Function 4
