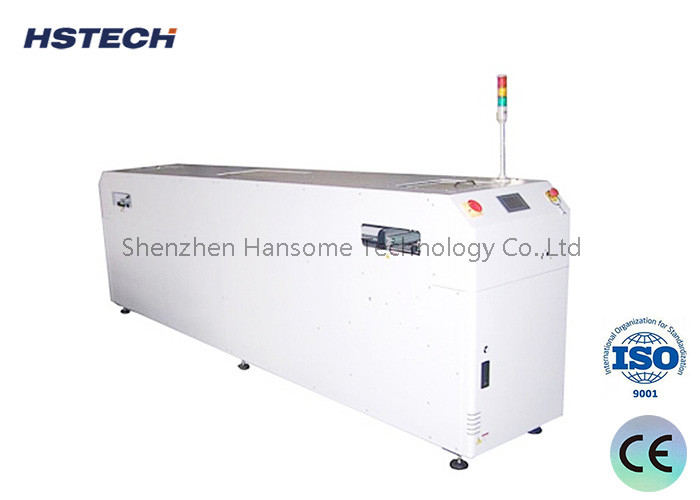

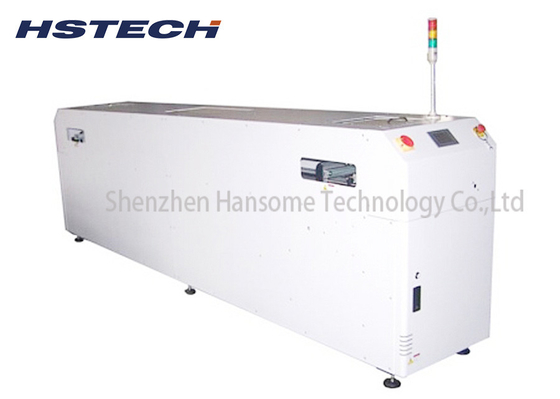

Touch Screen Control PCB Shuttle Conveyor Panel PCB Board Handling Equipment

Brand Name:	HSTECH
Model Number:	HS-PYJ250
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Shuttle Conveyor

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Signal:

SMEMA

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

Touch screen control panel PCB Board Handling Equipment PCB Shuttle Conveyor

Introduce

A PCB Shuttle Conveyor is a specialized conveyor system designed to facilitate the efficient transport of printed circuit boards (PCBs) within manufacturing environments. This type of conveyor is particularly useful in assembly lines where flexibility, space efficiency, and quick adjustments are essential.

Features

1, Module safety enclosed design.

2, Use stepper motor.

3, Stable,balanced, and precision moving.

4, Smooth and parallel width adjustment.

5, PCB transporting direction follow customer requirement.

6, Touch screen control panel.

8,SMEMA compatible.

Specification

Function	This unit used to redirect PCB flow to different channels, from 2 line to 1 line, or from 1 line to 2 lines.
Model	HS-PYJ250
Transport height	910±20mm
Translation distance	Standard 2200mm(1~4th rail) or customized
Translation time	Customized
Translation method	Stepper motor+conveyor belt
Rail fixed	1st and 4th rail fixed
Suitable PCB size	5050~400250mm
Transfer direction	L-R, or R-L
PCB transfer mode	2 in 1 out, 1 in 2 out, or 2 in 2 out.
Air pressure	4-6bar
PCB thickness	Min 0.4mm
Machine dimension	60026001200mm
Signal	SMEMA

Applications

PCB Assembly Lines:
- Used to transport PCBs between different stages of assembly, such as soldering, component placement, and inspection.
Testing Stations:
- Facilitates the movement of PCBs to and from testing equipment, ensuring efficient quality control processes.
Rework Stations:
- Can shuttle PCBs to rework areas for repairs or modifications, streamlining the workflow.
Storage and Logistics:
- Assists in managing the flow of PCBs within manufacturing facilities, ensuring they are readily available for the next processing stage.

Benefits

Increased Efficiency:
- Reduces manual handling, speeding up production processes and enhancing overall efficiency.
Improved Workflow:
- Enhances the flow of materials between production stages, minimizing potential bottlenecks and downtime.
Space Optimization:
- The compact design allows for better use of available space, contributing to a more organized manufacturing environment.
Flexibility:
- The ability to move PCBs in various directions allows for adaptable production layouts, accommodating changes as needed.
Enhanced Quality Control:
- Consistent transport helps maintain the integrity of PCBs, reducing the risk of damage during handling.
