| Brand Name: | HSTECH |
| Model Number: | HS-C1500 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pcs per month |

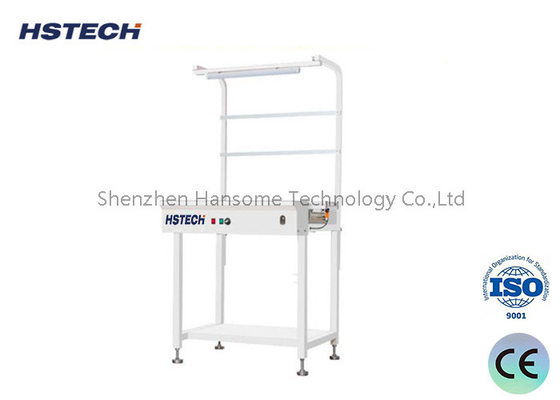

ESD Flat Belt Transportation Link Conveyor With Towerlight With Anti Static Flat Belt
Introduction
A Linking Conveyor is a type of conveyor system designed to connect different sections of a production line or assembly process. It facilitates the smooth transfer of materials, components, or products between various stages of manufacturing or processing.
Features:

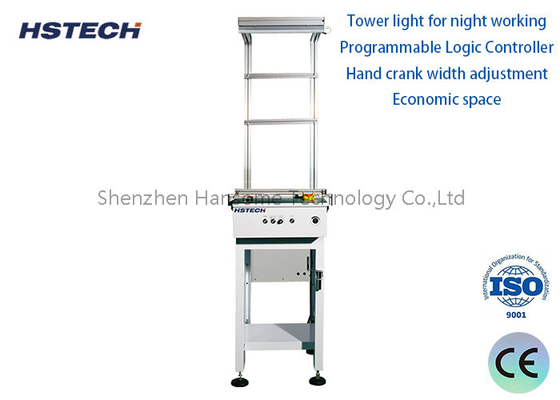

1. Tower light for night working.
2, Programmable Logic Controller.
3.Hand crank width adjustment
4, Economic space.
5.Use stainless steel screw,smooth and parallel width adjustment
6.Left to right travel,or right to left, front rail fixed
7.ESD working table.
8. Height adjustable and stable feet cup location.
9. Speed control.
10.SMEMA compatible.
Specification:
| Function | Used for linking the up-stream and down stream machines between SMT production line |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side, or customized |
| PCB width | 50*50~530*460mm |
| Conveyor length options | 0.5m/0.6m/1.0m/1.5m or customization |
| Speed adjust method | Knob |
| Width adjustment | Hand crank(optional auto adjust) |
| Power supply | AC110/220V,50/60Hz,±10% |
| Options | Light, Fan, Inspection function,Cover, Automatic width adjustment, dual rail,etc. |
| Signal | SMEMA |
Applications
Manufacturing:
Used to connect different stages of production lines, such as assembly, packaging, and inspection.
Warehousing and Distribution:
Facilitates the movement of goods within warehouses, helping to streamline logistics and order fulfillment processes.
Food Processing:
Commonly employed in food production facilities for transferring products between processing stages while maintaining hygiene standards.
Automotive Industry:
Used in automotive assembly lines to transport parts and components efficiently.
Electronics Assembly:
Links various stages of electronic component assembly, including placement, soldering, and testing.
Benefits
Increased Efficiency:
Automating the transfer of materials reduces manual handling and speeds up the production process.
Improved Workflow:
Enhances the flow of materials between different production stages, minimizing bottlenecks and downtime.
Space Optimization:
Linking conveyors can be designed to fit into tight spaces, maximizing floor space in production facilities.
Enhanced Safety:
Reduces the risk of workplace injuries associated with manual material handling.
Customizable Solutions:
Modular design allows for easy customization to meet specific production requirements and layout constraints.
