| Brand Name: | HSTECH |
| Model Number: | HS-C600 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

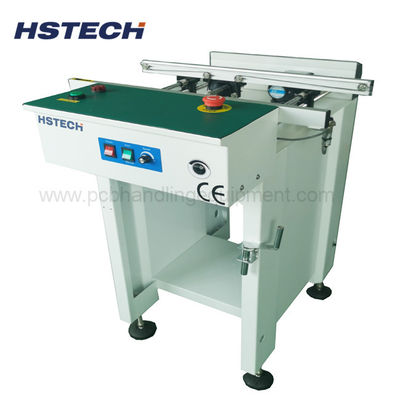

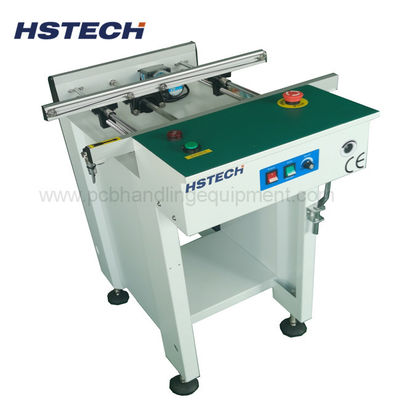

High Quanlity Alloy CB Handling Conveyor Transporting Rail 600mm Length With ESD Belt
Introduction
A PCB Handling Conveyor is an essential piece of equipment in the electronics manufacturing industry, specifically designed for the transport and management of printed circuit boards (PCBs) throughout various stages of the production process.
Features:
1. Thickness stable stainless steel machine body.
2. Max 390mm PCB width, hand crand width adjustment.
3. Transporting speed adjustment by Knob.
4. ESD green color work table.
5. Aluminum alloy transporting rail.
6. LED button control, speed adjustment motor.
7. Optional function available, tower light, inspection, dust cover, etc.
8. Customized requirement available.
9. Length available, 600mm, 1000mm, 1500mm, or optional.
10. SMEMA signal for inline connection.
Specification:
| Model | HS-C600/HS-C600S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
Applications
PCB Assembly Lines:
Used to transport PCBs between different assembly processes, such as component placement, soldering, and inspection.
Testing Stations:
Directs PCBs to automated testing equipment for quality assurance and functional testing.
Storage and Buffering:
Acts as a temporary storage solution, allowing for buffering of PCBs between different manufacturing stages to optimize workflow.
Rework and Repair:
Facilitates movement to repair stations for rework or adjustments.
Packaging and Shipping:
Transports finished PCBs to packaging stations for shipment or storage.
product details:
