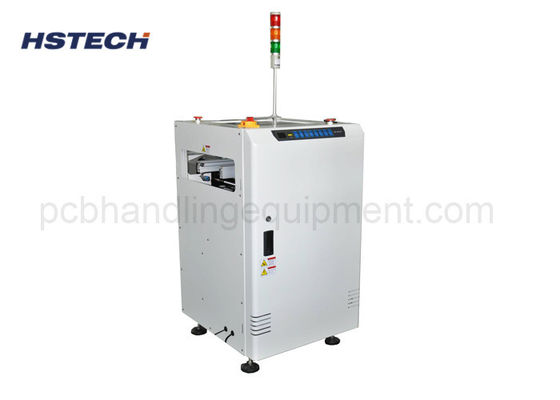

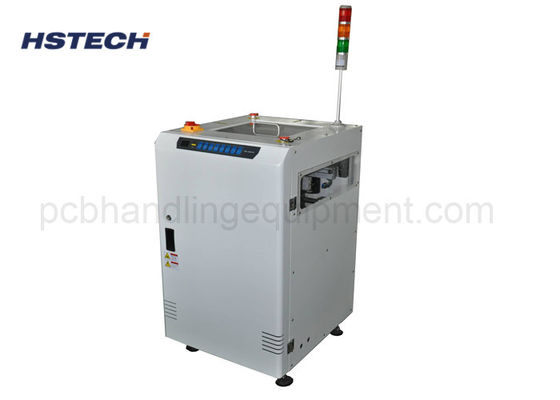

SMT PCB Turn Conveyor Flow Direction Change 3 Color Tower Light 90 180 Degree With SMEMA

SMT Flow Direction Change 3 Color Tower Light 90 180 Degree PCB Turn Conveyor

Introduction:

A PCB Turn Conveyor is a specialized type of conveyor system used in electronics manufacturing to facilitate the movement of printed circuit boards (PCBs) through various assembly processes. The defining feature of a turn conveyor is its ability to change the direction of PCB flow, which is essential for optimizing space and workflow in production lines.

Features:

1. Enclosed design with built-in torque limiter ensure high level

of safety.

2. Top safe cover can be opened for each access to hardware during

Maintenance.

3. Use friendly control button.

4. Smooth and precise rotation.

5. Minimize the transfer gap between conveyors.

6. PCB traffic flows can be customized.

7. Smooth and parallel width adjustment(lead screw).

8.SMEMA compatible.

Specification:

Applications

1. PCB Assembly Lines:

   • Used to redirect PCBs between different stages of the assembly process, such as from solder paste printing to component placement, or to inspection stations.

2. Quality Control:

   • Facilitates the movement of PCBs to testing and inspection areas, ensuring that quality checks are seamlessly integrated into the workflow.

3. Space Optimization:

   • Helps in optimizing floor space in manufacturing facilities by allowing for efficient layouts without the need for extensive linear conveyor runs.

4. Material Handling:

   • Useful for transporting materials and components, enhancing overall workflow efficiency within the manufacturing facility.

Benefits

• Enhanced Efficiency: By allowing for directional changes, turn conveyors help streamline PCB movement, reducing cycle times and improving overall production efficiency.
• Improved Workflow: Facilitates better organization of the production line, making it easier to manage multiple processes simultaneously.
• Flexibility: Can easily be integrated into existing conveyor systems, allowing manufacturers to adapt their layouts as needed.
• Reduced Labor Costs: Automates the movement of PCBs, decreasing reliance on manual handling and lowering operational costs.

Product Details:
