| Brand Name: | HSTECH |
| Model Number: | YH-890 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

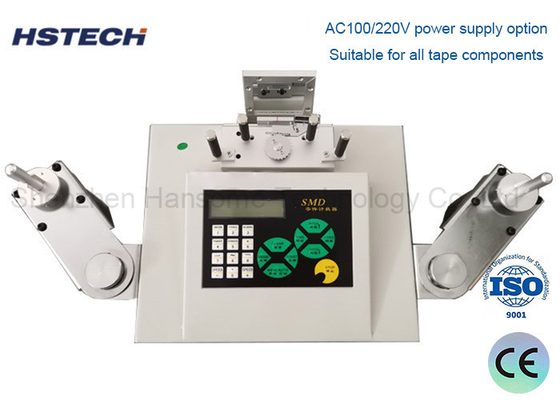

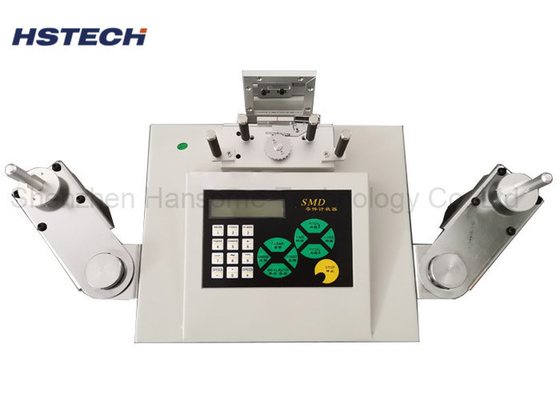

Easy Operate Infrared Sensor SMD Component Counter for Tape Components with Label Printer
Principle of the product
The SMD counter adopts the principle of photoelectric sensing,and uses the corresponding relation between the guide hole and the part.through the special-purpose processing chip and the large scale centralized circuit processingrealizes the zero error,accurately measures the number of SMD partscan realize the convenient and quick count,is the high efficiency auxiliary eguipment of SMT material management.
Specification
| Model: | YH-890 | |||
| Voltage: | AC220, 50/60Hz | |||
| Power Supply: | 15W | |||
| Motor Brand: | Panosonic 6W AC motor | |||
| Counting Range: | “-100000~100000" | |||
| Pitch Size: | 2,4,8,12,16,24,32,44,56,72,88 m | |||
| Plastic reel size: | 7-13 inch | |||
| Universal Products | Suitable for all tape components | |||
| Error | 0 | |||
| Product Size: | 450*270*180mm | |||
| Package size | 470*280*190mm | |||
| Gross Weight: | 9.5kg | |||
Features
1. AC100/220V power supply option.
2. Can connect the barcode Scanner and label printer,
3. Easy operate,designed to prevent tape dropping,minimizing risk of damage to tapes.
4. Count forward and reverse ,double-check feature ensures accuracy,built-in memory allows you to preset count quantity.
5. The counter use drafting LCD screen. Small size, light weight, easy to carry
6. Use patent reflector,humanized operation platform.
7. Optical fiber sensor detect leak ,motor will stop working when detected leak.
