| Brand Name: | HSTECH |
| Model Number: | HS-520 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

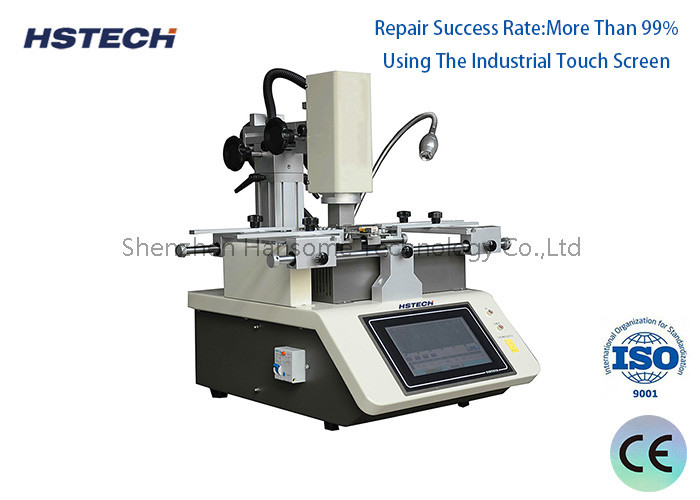

3 Heating Zones Manual BGA Rework Station with Industrial Touch Screen & CE
Specification
| Manual BGA Rework Station | Model:HS-520 |
| Power Supply | AC 220V±10% 50/60Hz |
| Total power | 3800W |
| Overall dimension | L460mm*W480mm*H500mm |
| PCB size | Max 300mm*280mm Min 10mm*10mm |
| BGA size | Max 60mm*60mm Min 1mm*1mm |
| PCB thickness | 0.3-5mm |
| Weight of machine | 20KG |
| Warranty | 3 years (1st year is free) |
| Usage Repair | chips / phone motherboard etc |
Features
1.Repair Success Rate:More Than 99%
2.Using The Industrial Touch Screen
3.Independent 3 Heating Zones, Hot Air Heating/ Infrared Preheat. (temperature accuracy ± 2℃)
4.With CE Certification
