| Brand Name: | HSTECH |
| Model Number: | HS-COU2000 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
High Speed SMD Component Counter Easy Operate With Patent Reflector & Universal Products
Technical Details
| Model | HS-COU2000 | |||
| Display | Digital LED display. | |||
| Voltage | AC220, 50/60Hz | |||
| Power Supply | 25W | |||
| Motor Brand | Panosonic | |||
| Counting Range | “-59999~59999” | |||
| Pitch Size | 1/2,1,2,3,4,5,6,7,8,9,10,11,12,13,14mm | |||
| Width of tape | 8,12,16,24,32,44,56,72,88 m | |||
| Plastic reel size | 7-13 inch | |||
| Universal Products | Suitable for all tape components | |||
| Product Size | 450*240*280mm | |||
| Package size | 610*305*350mm | |||
| Gross Weight | 9.5kg | |||
Features
1. This machine used to counting components from one reel to another reel.
2. Panasonic driven motor.
3. Fiber induction missing components tracking.
4. Can preset the counting number.
5. The counter use drafting LCD screen. Small size, light weight, easy to carry
6. Use patent reflector,humanized operation platform.
7. Install bar code , convenience electronic component management.
8. Optical fiber sensor detect leak ,motor will stop working when detected leak.

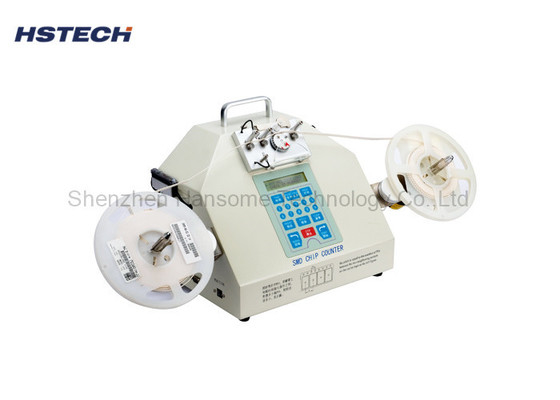

Product physical image
