| Brand Name: | HSTECH |
| Model Number: | HS-250DULD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

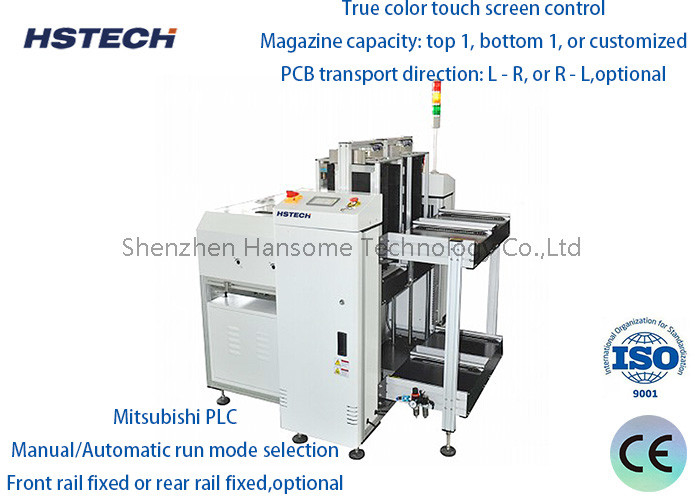

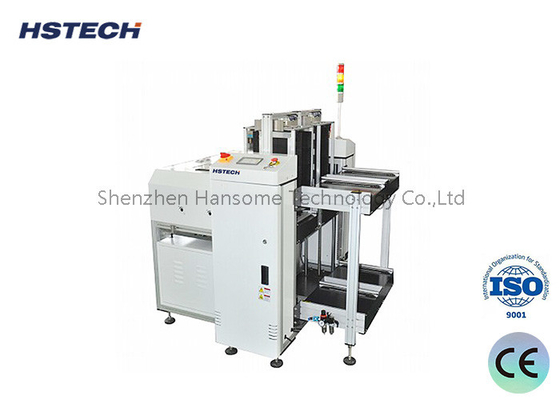

Dual Rail Light Display MITSUBISHI PLC PCB Unloader Board Handling Equipment
This machine is dual rail operation, used to collect the PCBs to the magazines.The PCB Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle.
Specification
| Model | HS-250DULD |
| PCB dimension | (50*50)~(350*250)mm |
| Magazine size | 355*320*565mm |
| PCB loading time | Around 6s |
| Magazine replace time | 30s |
| Power supply | AC100-230V,single Phase,max300A |
| Air supply | 4-6 bar, Max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L to R,or R to L9(optional) |
| PCB thickness | Min 0.4mm |
| Magazine qty | top 1pc, down 1 pc, or customized |
| Step pitch options | 1-4(10mm pitch) |
| Machine dimension | 1460*1500*1200mm |
| Weight | Approx 210kg |
Features
1,7-inch touch screen and PLC control,easy to operate.
2, Mitsubishi PLC
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9,Enclosed design ensure the highest security level.
10,Six operation modes: FIFO,LIFO,Loader,Unloader,NG board buffer and pass through.
11,The upper and lower air clamps ensure the location of the magazine accurately.
12, Special gas bath design ensures that the PCB panel is not pushed.
13,Tower light display
14,With SMEMA compatible.
