| Brand Name: | HSTECH |
| Model Number: | HS-C510F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

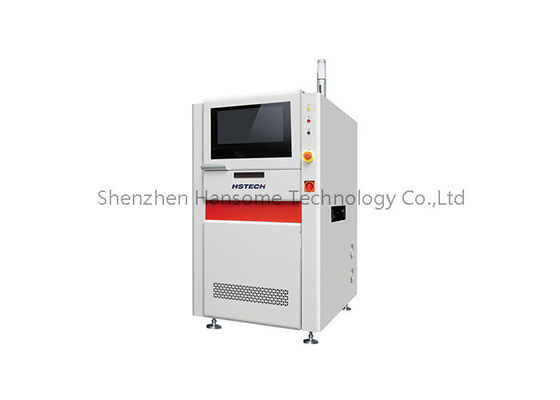

Laser Marking Machine with CCD Mark Point Location, Barcode Reading & CO2 Laser
Operational principle
Laser marking is a process in which, under the action of a high-energy laser beam, the processed product undergoes physical and chemical reactions such as melting, vaporization, heating, and discoloration. This leaves a mark on the surface of the product.
Specification
| Model | HS-C510F |
| Working method | Laser head moving |
| Leaser brand | SYNRAD CO2(America brand) |
| FIducial location | CCD+Mark positioning |
| Inline reading | Camera inline reading |
| PCB thickness | 0.5~5.0mm |
| PCB dimension | 50*50~510*460mm |
| Transpoting height | 900±20mm |
| Transportation direction | L-R/R-L |
| Width adjustment | Automatic |
| XY control system | PC+board card+servo motor |
| XY control accuracy | ±0.02mm |
| Wrong material recognition | Nagative board/Reverse/wrong recognition |
| Bad mark recognition |
Auto recognition bad mark, wont mark bad marks |
| Anti recode | Supported |
| Control system | Win7+self developed system |
| Power supply | Single phase AC 220V 16A 50/60Hz |
| Air pressure | ≥0.5 Mpa |
| Dimension | W1000*L1600*H1700 (mm) |
| System import | SHOP FLOW MES IMS SFIS,etc |
| Dimension | W1000*L1600*H1700 (mm) |
| Weight | 700 KG |

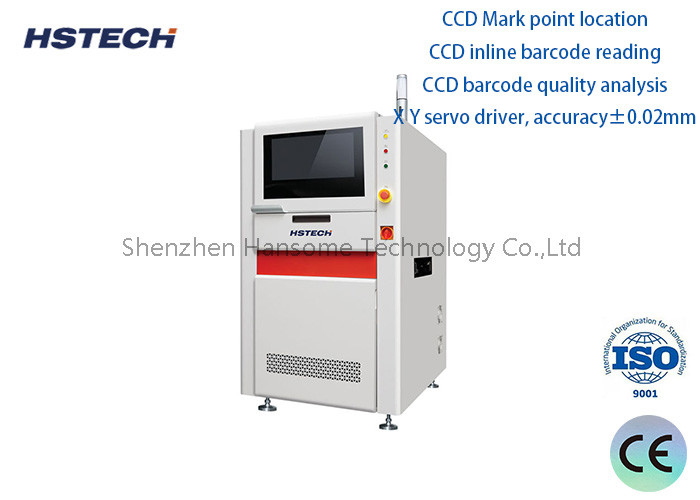

Features
1, CCD Mark point location
2, CCD inline barcode reading
3, CCD barcode quality analysis
4, X Y servo driver, accuracy±0.02mm
Advantages
1.Field Lens:We use famous brand precision laser. It can not only meet the needs of a variety of materials, but also have a good effect and long life.
2.Control Button:Simple and clear button,convenient for the operator can quickly learn to use the machine, but also can be in emergency time to suspend.
3.Computer Arm:It is made of high strength alloy material, not only good stability, but also very convenient for users to adjust the Angle.
4.Lifting Handle:Enables customers to precisely position for fast engraving.Adapting To Different Products Height.
5.Keyboard Table:The pull-out keyboard is not only convenient for users to use, but also can keep the keyboard clean during unused time when not in use.
