| Brand Name: | HSTECH |
| Model Number: | HS-460BC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
Touching Clean Method for PCB Handling Equipment and Ultra-High Speed Cleaning
Introduction

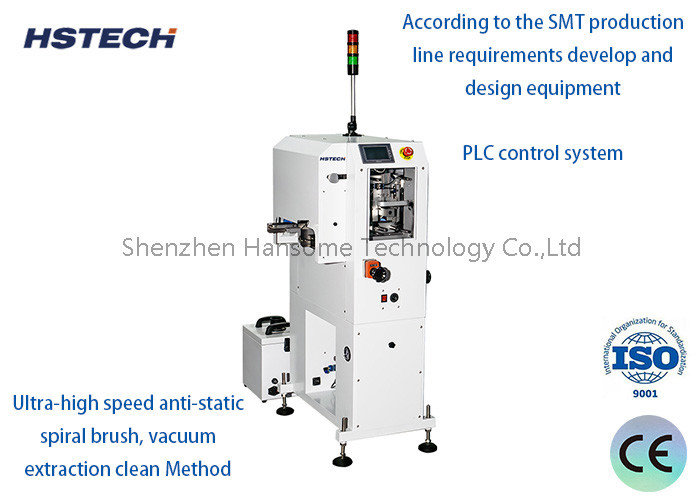

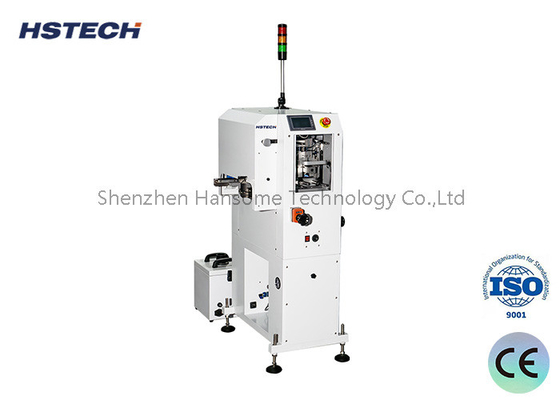

This machine is used between PCB loader and screen printer, with brush and sticker roller to clean the dust,electricity static on the surface of the PCB.
Specification
| Model | HS-250BC | HS-330BC | HS-390BC | HS-460BC |
| PCB dimension | (50*50)~(350*250) | (50*50)~(460*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Machine dimension | 555*820*1350 | 555*900*1350 | 555*960*1350 | 555*1030*1350 |
| Weight | 80kg | 90kg | 100kg | 110kg |
| PCB thickness | 0.4~5mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| Cleaning brush | top 2 pcs |
| Sticker roller | top 1 pc |
| Brush | ESD,high precision brush |
| If with dust collector | Yes |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
Features
1. Ultra high speed anti-static spiral brush, vacuum extraction cleaning method.
2. Specially designed for SMT printing, clean the foreign objects on the back of the AI plugin PCB board before and after installation.
3. Equipped with static elimination function, completely eliminating static interference.
4. Touch cleaning method, cleanliness above 99%.
5. Designed for cleaning drums, ensuring efficient, stable, and long-lasting cleaning effects.
6. The mechanical parts are designed with a withdrawable design, which is easy to maintain.
7. The interface is displayed in both Chinese and English, and the interface operation is convenient and simple.
