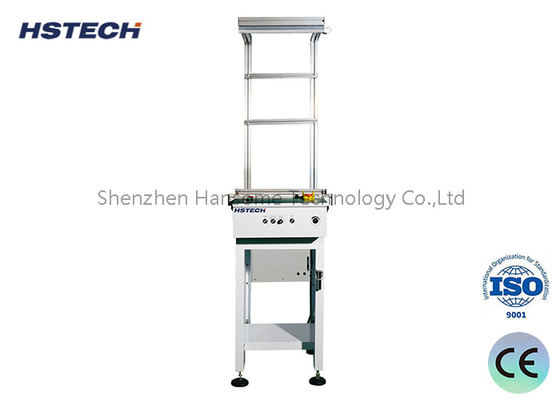

Smooth Transportation Link Conveyor With Towerlight WithAnti Static Flat Belt
Technical Details
| Function | Used for linking the up-stream and down stream machines between SMT production line |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side, or customized |
| PCB width | 50*50~530*460mm |
| Conveyor length options | 0.5m/0.6m/1.0m/1.5m or customization |
| Speed adjust method | Knob |
| Width adjustment | Hand crank(optional auto adjust) |
| Power supply | AC110/220V,50/60Hz,±10% |
| Options | Light, Fan, Inspection function,Cover, Automatic width adjustment, dual rail,etc. |
| Signal | SMEMA |
Features
1. Tower light for night working.
2, Programmable Logic Controller.
3.Hand crank width adjustment
4, Economic space.
5.Use stainless steel screw,smooth and parallel width adjustment
6.Left to right travel,or right to left, front rail fixed
7.ESD working table.
8. Height adjustable and stable feet cup location.
9. Speed control.
10.SMEMA compatible.
Application
Used for linking the up-stream and down stream machines between SMT production line
