| Brand Name: | HSTECH |
| Model Number: | HS-DS5331 |
| MOQ: | 1 set |
| Price: | 2900~4000USD/set |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

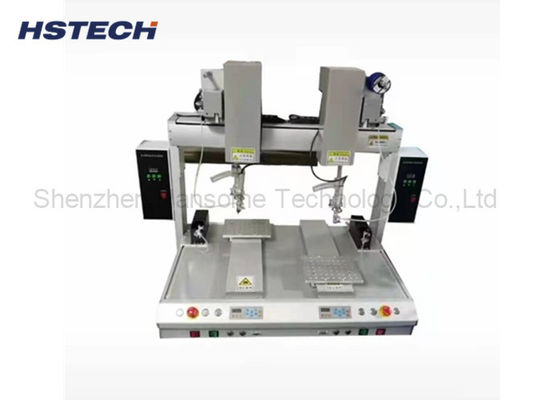

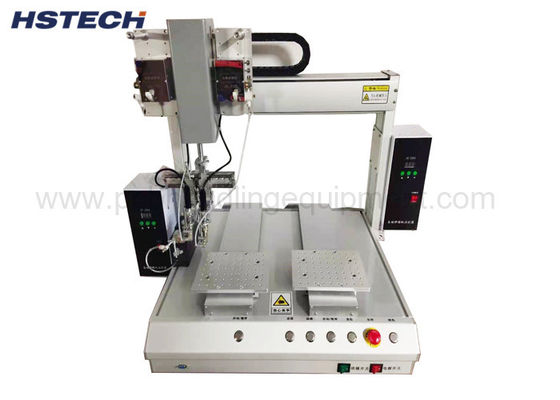

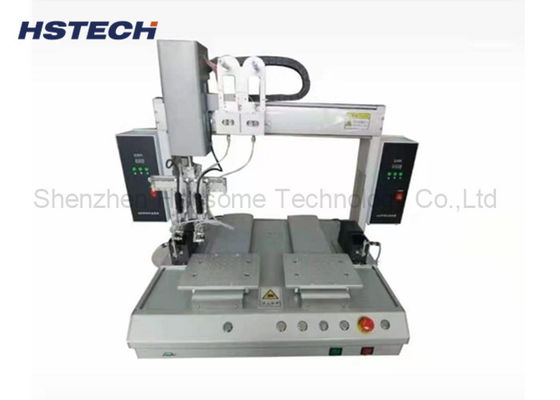

2 Sets Temperature Controller Dual Head Dual Platform Auto Soldering Robot
Introduction
This automatic soldering machine is a high efficiency soldering robot, which with dual soldering table, double soldering head,each head with a soldering iron, two temperature controller, but without Rotation function. This model suitable for soldering regular PCB board or production, dual soldering iron working at the same time, great improve the soldering efficiency. The machine adopt the air pressure and electricity driven, through the teacheng box for manual programing each points, then start the automatic soldering.
Features
1, Dual soldering table, dual soldering head.
2, Each soldering iron has a individual temperature controller.
3, Optional air purfier clean the solder smoke.
4, The soldering iron without nitrogen, very safety and environment protective,
5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
7, With the handheld teaching pendant, the programming is simple and easy to learn.
Specification
| Model | HS-DS5331 |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 500*300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
700*585*800mm |
