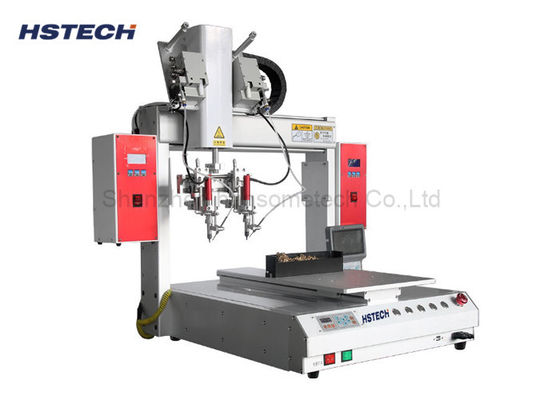

Multiple Axis Single Y Working Station Soldering Machine/Robot with File Storage
Introduction
This automatic soldering machine is double soldering head machine, customized moving range to 400mm. The machine is used to save labor, use automatic soldering method to instead traditional manual soldering. During the operation, only need one operator to loading and unloading the product after setting the program. With the machine not only can improve the production efficiency, but also improve the soldering quality, it's a more precision and flexible soldering method.
We have many options for the soldering machine, axis from 3 axis to max 8 axis, if rotation or not, and working platform single or dual, all depends on your requirement.
Specification
| Model | HS-S441S | HS-S551S | HS-S661S |
| Voltage | AC110V/220V,50/60Hz | ||
| X/Y/Z working range | 400*400*100mm | 500*500*100mm | 600*600*100mm |
| R axis | none | ||
| X/Y/Z moving speed | max 300mm/s | ||
| Driven system | Stepper motor,timing belt | ||
| Linear guide | Taiwan brand high precison guide | ||
| Repeat accuracy | ±0.02mm | ||
| Programing | Teach pendant | ||
| Control system | Control board | ||
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
||
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
||
| Document support | CAD,CorelDRAW | ||
| Iron Tin cleaning | Air cleaning/pneumatic | ||
| External interface | USB+RS232 | ||
| Soldering method | Point/drag soldering | ||
| Weight | 40kg | 50kg | 55kg |
| Machine dimension |
615*685*800mm |
715*715*800mm | 815*815*800mm |
Main machine configuration
1, Double soldering Iron, single Y working platform.
2, Handheld teach pendant programmer.
3, Heating controller
4, Broken tin controller
5, Solder pen assembly
6, Welding tip
7, Tin out components
Features
1, 3 Axis working, single Y working platform.
2, Double soldering iron model, the moving range has many options depends on the product dimension.
3, The machine made of high quality aluminum, also the machine arm is a private model aluminum alloy, stable structure, no bent, anti-rusty.
4, Support many welding method, point welding, drag welding, etc.
5, Teach pandent programing, can save max 99 groups program.
6, Stepper motor and timing belt control, equipped with Taiwan brand linear guide at the same time.
