| Brand Name: | HSTECH |
| Model Number: | HS-S5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

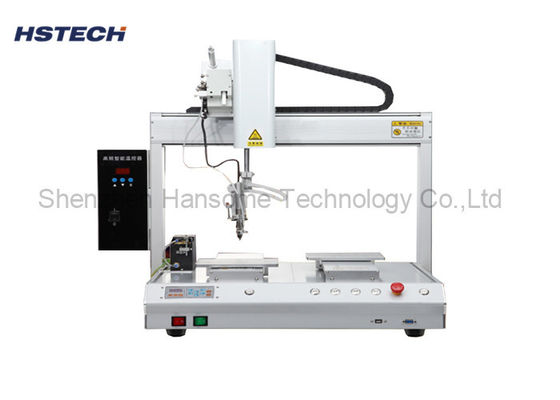

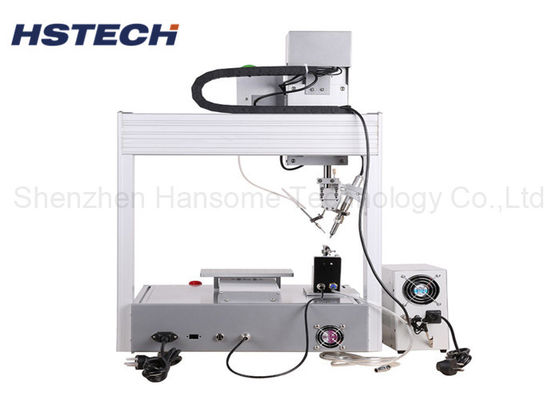

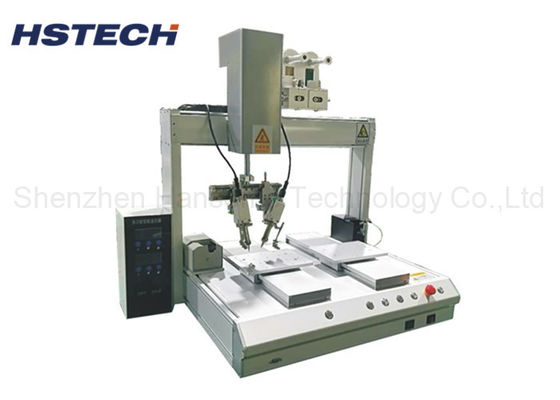

Solder Wire Feeding 4 Axis Robotic Soldering Machine with Automatic Operation
Introduction
This automatic desktop model soldering machine solves a variety of automated production issues with its flexible multi-axis joints.It have achieved high speed, accuracy and quality, which are able to automate even difficult soldering application samples. It's using 4 axis moving system, single soldering head, double Y platform, by customized fixtures to finish the whole process. It's widely used in PCB soldering wire, charger plug,solering,connector plug,DC terminal,LED strip light soldering and other fields.
Features
1, Desktop type, operator can fully watch the working process.
2, Multiple function, available for spot welding,drag soldering, automatic cleaning and etc.
3, Accuracy positioning, by using the customized fixtures to fixed the products, accuracy soldering.
4, Stepper motor driven, work with multiple axis, the moving range is big.
5, Soldering program can be copied and store, can import next time, save the programing time.
6, Support USB copy function, can copy the program to another machine which soldering the same product.
7, Temperatue controller can be adjustable, range from 5-500℃, high accuracy ±5℃, constant temperature,fast temperature compensation.
Specification
| Model | HS-S5331 |
| Input Voltage: | AC110/220V,50/60Hz |
| Output voltage: | DC24V |
| Moving range-- X axis | 500mm |
| Y1 axis | 300mm |
| Y2 axis | 300mm |
| Z axis | 100mm |
| Speed(X/Y1/Y2/Z): | 5-800mm/sec |
| Repeat accuracy(X/Y1/Y2/Z): | ±0.02mm |
| Working load capacity: | 5kg |
| Fixture load capacity: | 3kg |
| Preheating Temp Range: | 50-500℃ |
| Program capacity: | max99 |
| Communication port: | RS232 |
| Feeding: | Single tin feeding system |
| Solder tin diameter: | 0.3-1.6mm |
| Storage extension: | support flash storage |
| Programming mode: | Wroten or teching |
| Machine dimension: | 720*580*645mm |
| Net Weight: | 65KG |
