| Brand Name: | HSTECH |
| Model Number: | HS-158 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

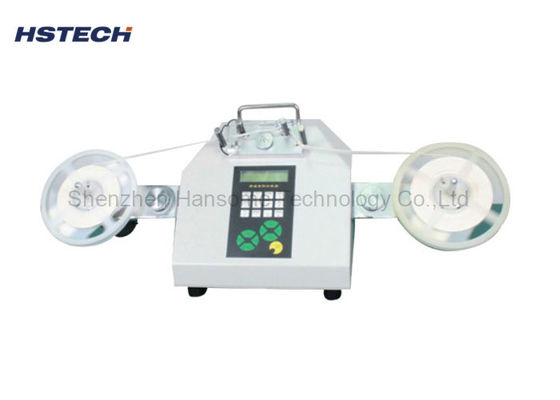

Pitch Selection LED Counter Display SMD Components Counter with Label Printer
Introduction
SMD Chip Counter is used for counting the quality of the SMD components in tape/reel packing. It's a kind of efficient auxiliary
equipment for material management. The functions as label printing and barcode copying can be chose to realize.It’s can be counting both positive and negative side, also can preset the counting quantity,it’s using LCD display, with english,easy to read and operation.
Very accurate and no error, it’s a good components counting equipment.
Leak detection principle
Leak detection means it can detect the missing components in the tape, its principle is because of the fiber optic sensor, the sensors shooting each other, if there is no components in the tape the sensor will give a signal to the machine, so the machine will stop counting.
Specification
| Model: | HS-158 | |||
| Voltage: | AC220, 50/60Hz | |||
| Power Supply: | 15W | |||
| Motor Brand: | Panosonic 6W AC motor | |||
| Counting Range: | “-100000~100000" | |||
| Pitch Size: | 2,4,8,12,16,24,32,44,56,72,88 m | |||
| Plastic reel size: | 7-13 inch | |||
| Universal Products | Suitable for all tape components | |||
| Error | 0 | |||
| Product Size: | 450*270*180mm | |||
| Package size | 470*280*190mm | |||
| Gross Weight: | 9.5kg | |||
