| Brand Name: | HSTECH |
| Model Number: | HS-460SDT |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

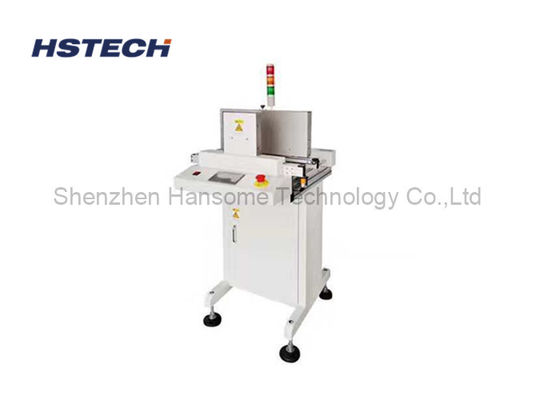

Small Size Room Saving MITSUBISHI PLC PCB Bare Board Destacker Handling Machine
Features
1, This small size PCB destacker is used at the start of SMT line, transport the bare board to the conveyor belt.
2, MITSUBISHI PLC and touch screen control method.
3, The whole machine is made of stainless steel.
4, Small size, can save much room in the factory, also easy to move.
5, The color of the machine is computer white.
6, Using the stepper motor for transporting.
7, Transporting belt is the ESD 7mm flat belt.
8, Three color tower light display.
9, Air Cylinder and the electromagnetic valve.
10, Use the T type screw driver to adjust the width.
11, SMEMA communication interface.
Specification
| Model | HS-460SDT | |
| PCB Size | 50*50~530*460 | |
| Machine dimension | (L)600*(W)650*(H)1195mm | |
| Usage | Loading the bare boards | |
| PCB thickness | Min 0.4mm | |
| Board loading time | 6s | |
| Air pressure | 4-6bar | |
| Air consumption | max 30L/min | |
| Current | max 300A | |
| Transport direction | L-R or R-L(optional) | |
| Capacity | 10~150pcs | |
| Machine height | standard(900±20mm) | |
| Weight | Approx 200kg | |
