| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
Features
Versatile and Compact: This unit expertly combines extensive applicability with a sleek, compact design, facilitating seamless integration into automated production lines. Its intuitive features enable rapid product changes, thereby enhancing both production flexibility and efficiency.
State-of-the-Art Inspection: Featuring an advanced inspection system, it automatically detects and alerts to issues like missing or unstable locks and loose screws, guaranteeing precision and reliability throughout the entire production process.
Optimized Operator Workflow: The revolutionary double Y-platform design permits operators to smoothly alternate between loading and unloading parts, refining their workflow and maximizing overall productivity.
| Model | HS-SL5331 | |

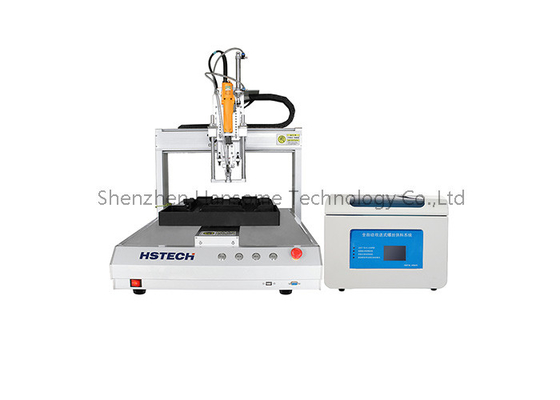

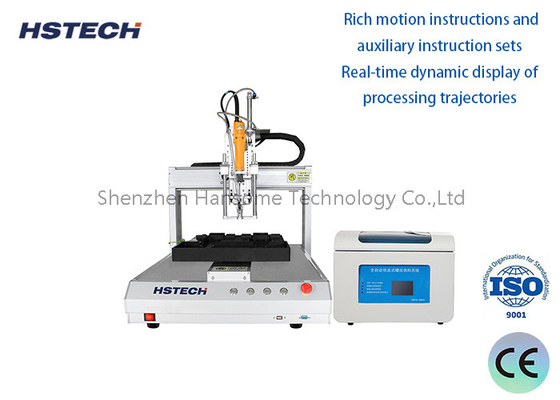

| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
About Product
About Details
SMT production line equipment
Universal SMT Machine:
This adaptable machine employs programs edited directly on the device to accurately position components onto designated spots. It efficiently handles SOP 28-pin or higher components (suitable even for high-speed applications) and supports roll, disc, or tubular packaging formats. Renowned for its precision and versatility, it operates at a pace slower than high-speed models but maintains exceptional accuracy.
Reflow Soldering Technique:
This technique involves applying SMT solder paste or red glue and configuring a precise temperature profile to facilitate soldering between the paste and component, guaranteeing a robust connection.
Board Discharge Station:
Boards are loaded onto the magazine via a conveyor belt and processed at the discharge station, where they are efficiently managed and prepared for subsequent procedures.
