| Brand Name: | HSTECH |
| Model Number: | HS-800 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

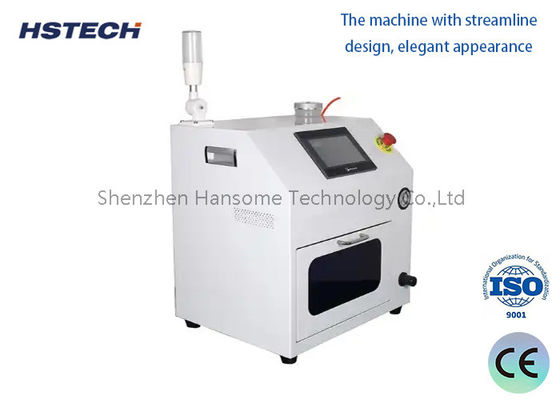

High Pressure SMT Mounting Suction Vacuum Nozzle Cleaner Smart Washing Machine
Introduction:
The HS-800 nozzle cleaning machine efficiently automates the process of cleaning and drying, utilizing a sophisticated multi-nozzle spraying technique. This method leverages advanced fluid mechanics to atomize water into a microfine mist, which generates considerable kinetic energy at sonic speeds. The resulting spray pattern is continuous and comprehensive, ensuring that it thoroughly covers the nozzles. The powerful spray is capable of effectively eliminating dirt from both the exterior and interior surfaces of the nozzles. Tailored specifically for cleaning small components, including those of sizes 0603, 0402, 0201, and 01005, as well as high-precision nozzles, this machine guarantees meticulous and thorough cleaning results.
Product Features:
Elegant Aesthetic & Premium Construction: The machine features a refined design, with its robust body meticulously crafted from high-precision 304 stainless steel for unparalleled durability.

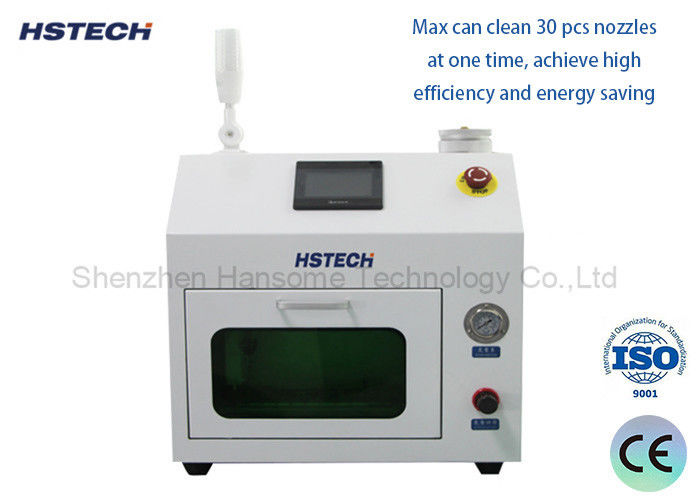

Optimized Efficiency & Energy Conservation: With the capacity to clean up to 30 nozzles simultaneously, the machine maximizes productivity while minimizing energy consumption.
Versatile Cleaning Capabilities: It is compatible with all types of nozzles, including cross-type, I-shaped, and specialized designs, ensuring consistent and highly effective cleaning outcomes.
Advanced Cleaning Technology: By incorporating atomized water flow and supersonic spraying, it meticulously eliminates dirt and impurities that ultrasonic waves might miss, ensuring thorough cleaning even in the finest nozzle openings.
User-Friendly Operation: Designed for intuitive use, the machine features an English-language interface to cater to global users.
Transparent Monitoring: An inspection window allows users to observe the cleaning process in real time, ensuring transparency and control.
Eco-Friendly Cleaning Solution: Using D.I. (deionized) water as the cleaning agent, it poses no harm to nozzles or reflector panels, promoting environmental sustainability.
Stable & Dependable Operation: Equipped with a touchscreen and a PLC (Programmable Logic Controller) distributed control system, the machine ensures reliable and consistent performance.
Specification:
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Application scenarios:
Size:
