JUKI SMT Nozzle High Speed 502 2000 Series Nozzle Head for Components Suction

 High Speed 502 2000 Series Nozzle Head JUKI SMT Nozzle for Components Suction

The 502 nozzle provides a genuine or compatible alternative to outdated nozzles utilized in chip mounting equipment. As a precision tool, it excels in precisely aspirating components. Made from high-quality tungsten steel, it ensures robust and long-lasting performance.

Overview:

JUKI is a renowned provider of electronic manufacturing equipment, particularly distinguished by its nozzle products that are extensively used in SMT (Surface Mount Technology) assembly procedures. The nozzle serves a vital function in the placement machine by lifting electronic components from the feeder tray and precisely positioning them onto the PCB (Printed Circuit Board).

Features of JUKI nozzles:

Diverse Offerings: JUKI offers a wide array of nozzles in varying sizes, shapes, and materials to accommodate a broad spectrum of electronic components.

Accuracy Assurance: The nozzle ensures impeccable placement precision of components, guaranteeing the utmost quality in the assembly procedure.

Durability Excellence: Made from superior-quality materials, the nozzles exhibit extended lifespan thanks to their remarkable resistance to wear and tear.

Streamlined Maintenance: Effortless replacement and cleaning capabilities reduce downtime, thereby enhancing overall operational productivity.

Main application scenarios:

SMT Assembly Line Application: JUKI nozzles are extensively utilized in diverse placement machines within the SMT (Surface Mount Technology) assembly line.

Electronic Device Production: These nozzles facilitate the precise placement of components in electronic products, such as mobile phones, computers, and household appliances.

Medical Equipment Manufacturing: They are deployed in the installation of components in high-precision medical devices, thereby ensuring the reliability and functionality of these instruments.

Aerospace Industry Integration: JUKI nozzles are crucial in the assembly of electronic modules within the aerospace sector, contributing significantly to the safety and performance of aircraft systems.

Specifications

Features

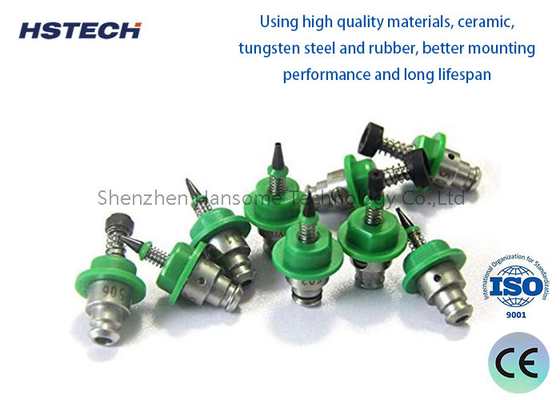

1. Made from high-quality materials such as ceramic, tungsten steel, and rubber, these nozzles deliver exceptional mounting performance and a long service life.
2. The nozzles are safely enclosed in customized blister packs to safeguard them from damage during shipping.

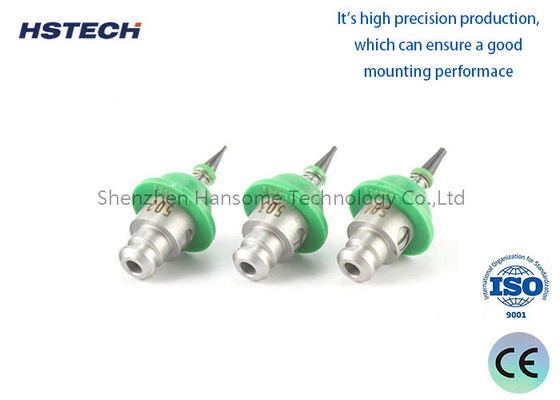

3. With a standard size and zero tolerance for error, these nozzles demonstrate remarkable precision.
4. Available in eco-friendly green and silver colors, these nozzles not only possess an appealing appearance but also align with environmental conservation efforts.
5. Suitable for suctioning and placing a wide range of components, including cathode capacitors, diodes, SOTs, QFNs, BGAs, and various others.

JUKI 2000 Series nozzle models

E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
