| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
Features
Compact and Adaptable:
Seamlessly integrates into various production lines, optimizing space utilization and facilitating smooth tool changes for a seamless workflow.
Intelligent Quality Control:
Smartly detects absent fasteners or loose screws, guaranteeing consistent superior quality.
Dual Y-Axis Boost:
Accelerates component loading by alternating processes, thereby enhancing overall throughput.
High-Precision 4-Axis Workspace:
A versatile 500x300x300x100mm workspace tailored for intricate, high-accuracy tasks.
User-Centric Automation:
Merges advanced automation with user-friendly controls for straightforward management and optimization.
Flexible Programming Options:
A touchscreen interface and teach pendant provide customizable setup choices for enhanced versatility.
Streamlined Multi-Machine Control:
Centralized management simplifies complex operations, facilitating maintenance and monitoring.
Proactive Leak Prevention:
Identifies missing screws preemptively, preserving product integrity and minimizing operational disruptions.
| Model | HS-SL5331 | |

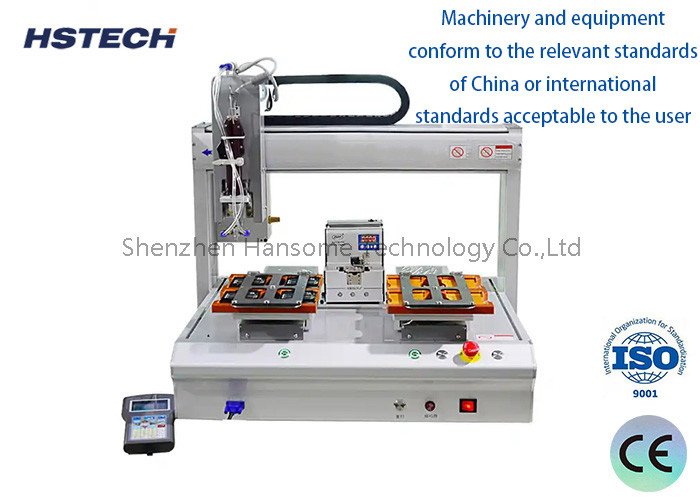

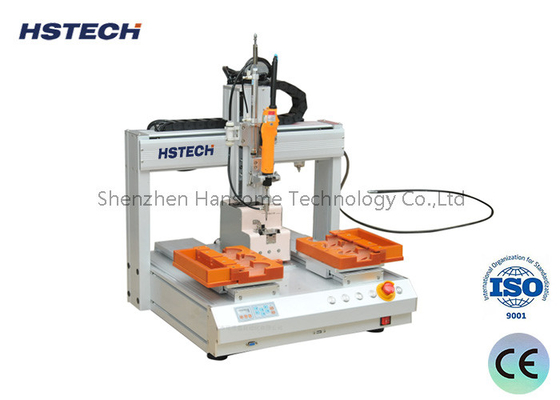

| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
