| Brand Name: | JUKI |
| Model Number: | JUKI 502 KE2000 series |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |

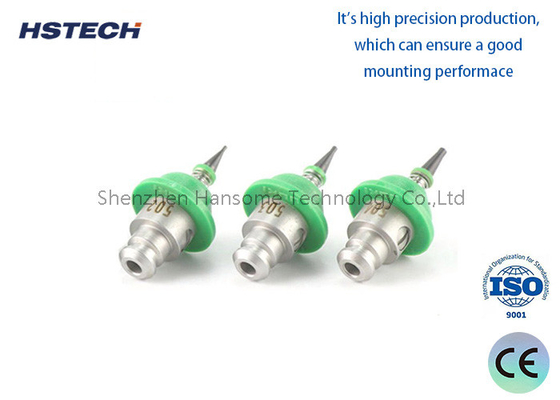

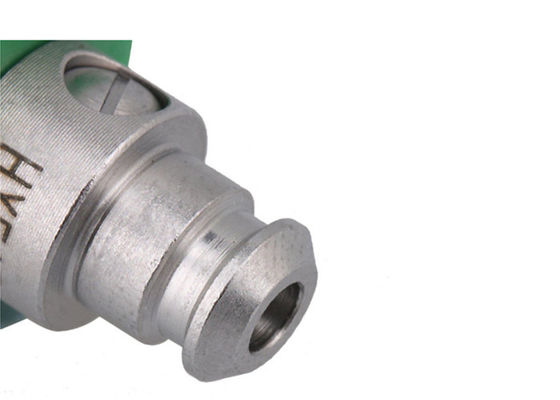

High Speed 502 2000 Series Nozzle Head JUKI SMT Nozzle for Components Suction
Juki Nozzle:
The 502 nozzle offers a genuine or compatible replacement option for outdated nozzles used in chip mounting machinery. As a precision instrument, it excels in accurately suctioning components. Crafted from premium tungsten steel, it guarantees robust and enduring performance.
Overview:
JUKI is a well-known supplier of electronic manufacturing equipment, particularly known for its nozzle products widely used in SMT (Surface Mount Technology) assembly processes. The nozzle plays a crucial role in the placement machine by lifting electronic components from the feeder tray and accurately placing them onto the PCB (Printed Circuit Board).
Features of JUKI nozzles:
Diverse Product Range: JUKI provides a comprehensive selection of nozzles in different sizes, shapes, and materials to cater to a vast range of electronic components.
Precision Positioning: The nozzle guarantees precise placement of components, ensuring the highest quality in the assembly process.
Robust Durability: Crafted from superior materials, the nozzles offer extended longevity due to their exceptional wear resistance.
Efficient Maintenance: Easy replacement and cleaning features minimize downtime, boosting overall operational efficiency.
Main application scenarios:
SMT Assembly Line: JUKI nozzles are widely used in various placement machines within the SMT (Surface Mount Technology) assembly line.
Electronic Product Manufacturing: These nozzles are employed for the accurate placement of components in electronic devices, including mobile phones, computers, and household appliances.
Medical Device Fabrication: They are utilized in the installation of components in high-precision medical equipment, ensuring the reliability and functionality of medical devices.
Aerospace Assembly: JUKI nozzles play a vital role in the assembly of electronic modules within the aerospace industry, contributing to the safety and performance of aircraft systems.
Specifications
| Brand | JUKI |
| Parts number | E36017290A0 |
| Nozzle type | 502 |
| Chip mounter | 20000series |
| Nozzle size | 31x16mm / 1.22x0.63 inch(Height x Diameter) |
| Nozzle color | Sliver and green |
| Material | Ceramic+Tungsten steel+Rubber |
| Weight | 8g |
| Package | Customized Blister |
Features
Crafted from premium materials including ceramic, tungsten steel, and rubber, these nozzles offer superior mounting performance and a prolonged lifespan.
The nozzles are securely packaged in customized blister packs to prevent damage during transportation.
Featuring a standard size with zero tolerance for error, these nozzles exhibit high precision.
Designed in eco-friendly green and silver hues, these nozzles not only look appealing but also contribute to environmental protection.
Ideal for suction and placement of various components, including cathode capacitors, diodes, SOTs, QFNs, BGAs, and more.
JUKI 2000 Series nozzle models
E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
