| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
Features
Versatile and Space-Saving: This unit seamlessly blends broad applicability with a compact design, enabling easy integration into automated production lines. Its user-friendly features allow for swift product changes, boosting both production flexibility and efficiency.
Advanced Inspection System: Equipped with a cutting-edge inspection system, it automatically identifies and alerts issues such as missing or unstable locks and loose screws, ensuring precision and reliability throughout the production process.

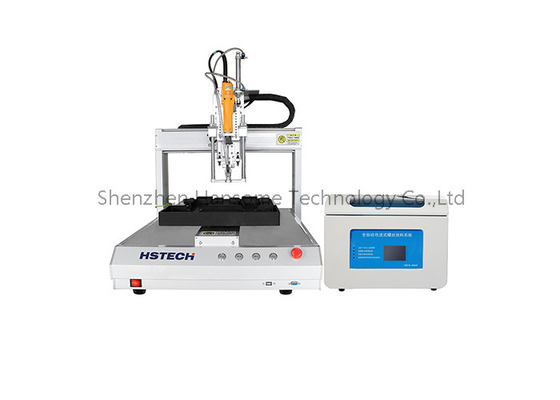

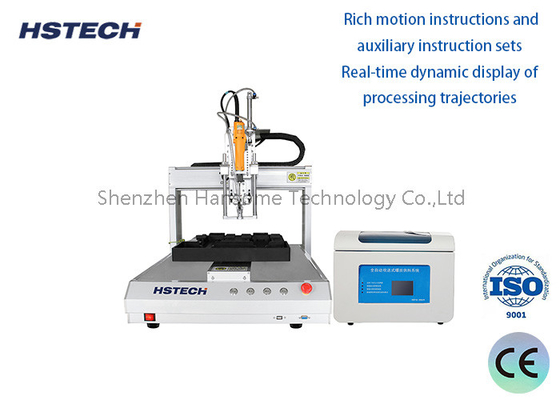

Enhanced Operator Workflow: The innovative double Y-platform design allows operators to seamlessly switch between loading and unloading parts, optimizing their workflow and maximizing overall productivity.
| Model | HS-SL5331 | |
| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
About Product
About Details
SMT production line equipment
Universal SMT Machine: This versatile machine utilizes programs edited directly on the device to precisely place components onto designated positions. It is capable of handling SOP 28-pin or higher components (including those suitable for high-speed machines) and accommodates roll, disc, or tubular packaging formats. Known for its high precision and adaptability, it operates at a slower installation speed than high-speed machines.
Reflow Soldering Process: This process involves applying SMT solder paste or red glue and setting an appropriate temperature curve to enable soldering between the solder paste and the component, ensuring a secure connection.
Board Unloading Station: Boards are loaded onto the magazine through a conveyor track and processed at the unloading station, where they are efficiently handled and prepared for subsequent steps.
