| Brand Name: | HSTECH |
| Model Number: | HS-505 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

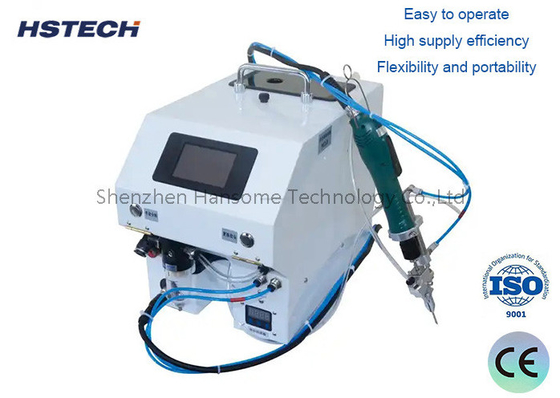

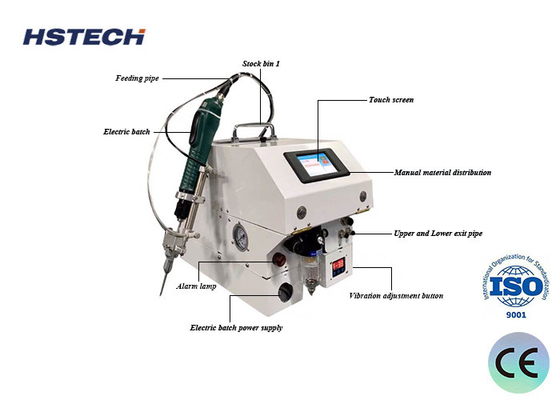

Handheld Screw tightening machine with auto screw feeder system
Application
This portable automatic screw-feeding and tightening device is extensively utilized in a wide range of electronic products, encompassing toys, mobile phones, telephones, calculators, navigation systems, dashboard cameras, audio setups, video devices, and various others, guaranteeing precise and effective screw assembly processes.
Features
High-Efficiency Screw Feeding:
This machine achieves a remarkable screw discharge rate of up to 60 screws per minute, significantly enhancing mass production efficiency. It helps reduce labor costs and operational expenses for businesses.
Exceptional Operational Stability:
The machine ensures individual screw dispensing, minimizing the risk of jamming. Even non-experts can easily resolve any jam-related issues that may occur.
Effortless One-Handed Operation:
With a gentle press of a button, it facilitates smooth screw locking, eliminating the need for constant screw retrieval.
User-Intuitive Design:
Professional training is not a prerequisite; beginners can start using it right away without any hassle. Additionally, long-term use does not induce fatigue.
Versatile and Compact Design:
The air feeder offers flexible positioning, both on and off the workbench, catering to diverse screw fastening requirements.
Intuitive Touchscreen Control:
The touchscreen interface is designed for user convenience, making operational settings more straightforward and providing users with a seamless experience.
Specfication
| Model | HS-505 |
| Screw capacity: | M3*10/3000PCS |
| Efficiency: | 50-80pcs/min |
| Screw feeding speed: | 0.5s/pcs (standard screw) |
| Feeding type: | Blowing |
| Feeding length: | 1- 4Meter |
| Power supply: | AC220V 50HZ |
| Power: | 40W |
| Working pressure: | 0.4Mpa-0.6Mpa |
| Weight: | App 11KG |
| Dimension: | 370*220*280mm |
| Noise | Lower 65 |
