| Brand Name: | HSTECH |
| Model Number: | HS-310 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |
Ultra Low Cutting Force Stress PCB Depaneling Machine
Introduction
Powered by a combination of air pressure and electricity, this machine utilizes double linear blade cutting, making it ideal for PCB depaneling with high standards. It boasts ultra-low cutting force stress, ensuring that boards remain well-protected and unbent. Additionally, the cutting surface is smooth and flat, devoid of any imperfections. Furthermore, the machine is equipped with a counter that accurately tracks the number of separation times.
Features

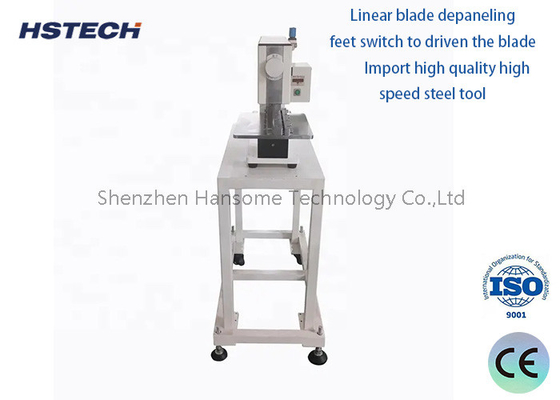

The machine employs linear blade depaneling, with a foot switch to activate the blade.
It safely shears boards, even with parts as close as 0.5mm to the score line, ensuring precision and safety.
Boards are inserted into the blade through a v-shaped slot for accurate alignment and cutting.
Both air pressure (pneumatic power) and electricity are required to operate the machine.

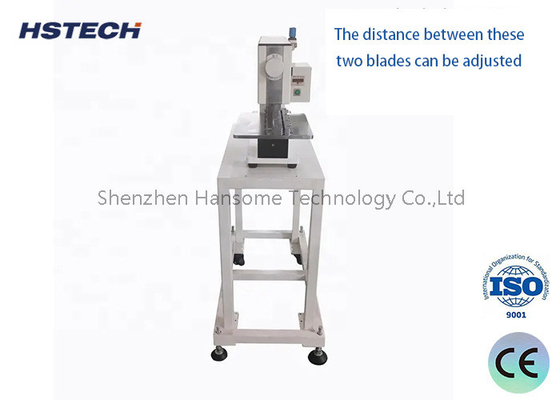

The distance between the two blades can be adjusted to accommodate different PCB thicknesses and cutting requirements.
The depanelizer is mounted on a standard-height stainless steel structure for durability and stability.
The machine features wheels for easy mobility and positioning.
Specification
| Model | HS-310 |
| Power | Penaumatic and electricity |
| Air supply | 0.5~0.8Mpa |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut board |
About Packaging
About Us
Shenzhen HanSome Technology Co., Ltd. (HSTECH), established in 2012, is headed by a seasoned engineer with extensive experience in the EMS industry. From its inception, the company has specialized in the development and production of PCB processing equipment, subsequently broadening its scope to include the manufacturing of PCB strippers and SMT cleaning machines. HSTECH boasts a proficient and ambitious R&D team dedicated to continuously exploring cutting-edge industry technologies. Complemented by an export-focused and seasoned marketing team, HSTECH accurately captures market dynamics to ensure its products remain in sync with evolving market demands.
Throughout its journey, HSTECH has upheld the principle of innovative development, consistently achieving technological and product breakthroughs. We are dedicated to offering cost-effective products that empower our customers to enhance productivity while minimizing costs and labor. Hansheng Technology stands in solidarity with its customers, striving together for a brighter future.
HSTECH has set its sights on achieving "High Quality and Smartness," aligning with the "Quality-Oriented and Customer-Centric" philosophy while incorporating industry-specific features and pursuing smart technology for the realization of smart factories. Regarding after-sales service, we adhere to the principle of "Responsibility," promptly responding to any quality feedback and consistently serving our customers.
