| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
Features
Versatile and Compact: This unit combines broad applicability with a space-saving design, making it easy to integrate into automated production lines. Its user-friendly design facilitates rapid product changes, enhancing both production flexibility and efficiency.
Sophisticated Inspection Capabilities: Equipped with a state-of-the-art inspection system, it automatically detects and alerts issues such as missing locks, unstable locks, and loose screws, ensuring precision and reliability throughout every production stage.
Optimized Operator Workflow: Thanks to its innovative double Y-platform design, operators can smoothly transition between loading and unloading parts, streamlining their workflow and maximizing overall productivity.
| Model | HS-SL5331 | |

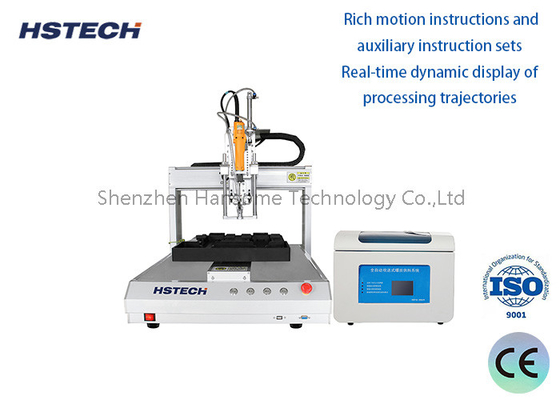

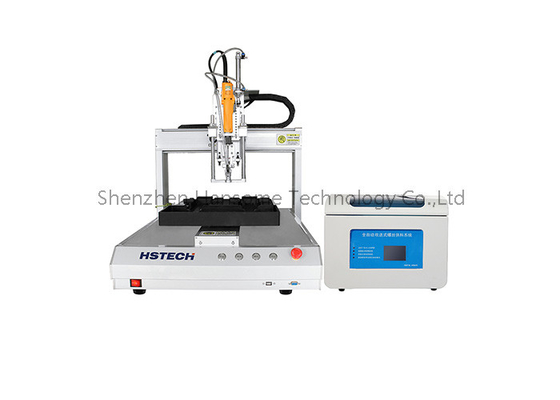

| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
About Product
About Details
SMT production line equipment
Universal SMT Machine: This machine employs programs edited directly on the device to accurately place components onto designated positions. Capable of handling SOP 28-pin or higher components (inclusive of those mountable by high-speed machines), it accommodates roll, disc, or tubular packaging formats. Characterized by its high precision and versatility, it operates at a slower installation speed compared to high-speed machines.
Reflow Soldering Process: This involves applying SMT solder paste or red glue and establishing an appropriate temperature curve to facilitate soldering between the solder paste and the component.
Board Unloading Station: Boards are loaded onto the magazine via a conveyor track for processing at the unloading station.
