High-Precision SMT Nozzle for FUJI H01/H02 5.0 7.0GH08M RH01 RH02 Pick And Place Machine

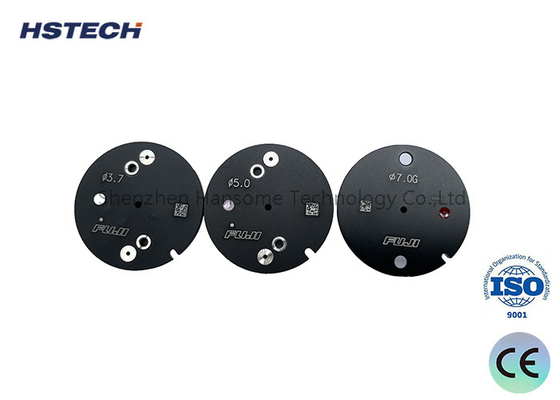

SMT FUJI Nozzle
The nozzle holds a crucial position in SMT equipment, especially in automatic placement machines, as it undertakes the precise task of lifting and transporting electronic components. Consequently, it aids in the seamless automation of component placement through surface mount technology (SMT).
Overview:
FUJI, a reputable provider of electronic manufacturing equipment, offers nozzles that are extensively utilized in SMT assembly procedures. These nozzles function as the pivotal part of the placement machine, responsible for lifting electronic components from the feeder tray and precisely positioning them onto the PCB board.
Working principle
Vacuum System:
The placement machine is furnished with an internal vacuum pump that generates a robust suction force. This pump is linked to the nozzle via a tubing network, constructing a vacuum negative pressure system.
Nozzle Construction:
The nozzle consists of several integral parts, including a nozzle head, a gasket, a nozzle cover, and others. The central opening of the nozzle head is connected to the vacuum system to establish negative pressure.
Suction Mechanism:
As the nozzle head approaches an electronic component, the negative pressure generated by the vacuum system pulls the component towards it. The gasket and nozzle cover collaborate to create a seal around the nozzle head, ensuring no gas leakage that could undermine the suction effect.
Placement Mechanism:
Once securely gripped by the nozzle, the placement machine accurately positions the component at the intended location on the PCB. During this placement, the negative pressure holds the component firmly in place. Upon successful placement, the negative pressure is relieved, enabling the component to be easily released from the nozzle.
Main features
Precision Suction Capability
The FUJI Nozzle employs cutting-edge vacuum adsorption technology to precisely engage with SMD components of diverse sizes and shapes.
Its robust suction force and unparalleled reliability prevent components from detaching during the placement process.
Exceptional Durability
Crafted from premium metal materials, the nozzle body exhibits exceptional resistance to high temperatures and wear.
This ensures a lengthy lifespan, significantly minimizing the need for maintenance and replacement, thereby reducing associated costs.
Versatile Adaptability
The FUJI Nozzle series boasts a wide array of specifications and sizes, seamlessly accommodating various models of automated mounting equipment.
Quick nozzle interchanges facilitate the fulfillment of diverse production requirements.
Enhanced Production Efficiency
The combination of high-speed and precise suction and placement operations significantly boosts the overall efficiency of the SMT production line.
This reduction in manual interventions helps lower labor costs.
Nozzle material:
| Tungsten steel nozzle | Tungsten steel nozzle is strong and durable, but it is easy to turn white. If it turns white, use an oil-based pen to paint it, and you can continue to use it. |
| Ceramic nozzles | Ceramic nozzles never turn white, but are brittle and easy to break. Careful use can avoid or reduce breakage. |
| Diamond steel nozzle | It is strong, easy to use, and will never turn white, but it is very expensive and not cost-effective. |
| Glue nozzle | When the surface of the material is uneven or the material is sticky, it is suitable to use the glue nozzle. However, the life of the glue nozzle is not long. It is recommended to buy more glue nozzles for spare when ordering the glue nozzle. When the nozzle is worn, you can just replace it with the rubber nozzle yourself |
Main application scenarios:
SMT Assembly Line: FUJI nozzles are widely used in various pick-and-place machines across SMT production lines.
Electronic Product Manufacturing: They serve to accurately position components within electronic gadgets like mobile phones, computers, and household appliances.
Medical Device Assembly: These nozzles are utilized for installing parts in high-precision medical devices.
Aerospace Industry: They contribute to the assembly of electronic systems for aerospace purposes.
FUJI NXT Series NOZZLE:
NXT H08(H12) 2.5G nozzle,
AA73500 NXT H08(H12) 0.7 nozzle,
AA08500 NXT H01 3.7G nozzle,
AA08400 NXT H01 2.5G nozzle,
AA08300 NXT H01 20.0 nozzle,
AA08200 NXT H01 15.0 nozzle,
AA08100 NXT H01 10.0 nozzle,
AA08000 NXT H01 7.0 nozzle,
AA07900 NXT H01 5.0 nozzle,
AA07600 NXT H01 20.0G nozzle,
AA07400 NXT H01 10.0G nozzle,
AA07300 NXT H01 7.0G nozzle,
AA07200 NXT H01 5.0G nozzle,
AA07100 NXT H01 3.7 nozzle,
AA07000 NXT H01 2.5 nozzle,
AA06900 NXT H01 1.8 nozzle,
AA06400 NXT H08(H12) 1.3M nozzle,
AA06400 NXT H08(H12) 1.3G nozzle,
AA06300 NXT H08(H12) 5.0G nozzle,
AA05800 NXT H08(H12) 1.0 nozzle,
AA05800 NXT H01 1.3 nozzle,
AA05700 NXT H08(H12) 0.7 nozzle (0.7X0.5),
AA05600 NXT H08(H12) 0.4 nozzle (0.45X0.3),
AA20E00 NXT H08(H12) 5.0 nozzle,
AA20D00 NXT H08(H12) 3.7 nozzle,
AA20C00 NXT H08(H12) 2.5 nozzle,
AA20B00 NXT H08(H12) 1.8 nozzle,
AA20A00 NXT H08(H12) 1.3 nozzle,
AA19G00 NXT H08(H12) 1.8G nozzle,
AA18C00 NXT H08(H12) 3.7G nozzle,
AA11R00 NXT H01 1.8G nozzle,
AA08C00 or AA07L00 or AA07W00 or AA07D00 NXT H04 10.0 nozzle,
All item of nozzle for FUJI Pick and Place Machine
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
