| Brand Name: | HSTECH |
| Model Number: | HS-800 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

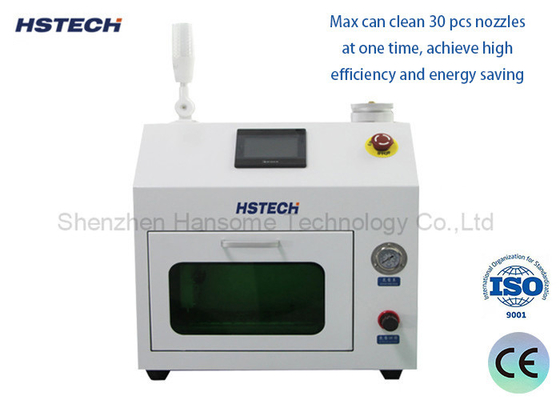

High Pressure SMT Mounting Suction Vacuum Nozzle Cleaner Smart Washing Machine
Introduction:
The HS-800 nozzle cleaning machine efficiently automates the cleaning and drying process. It employs a multi-nozzle spraying technique that leverages fluid mechanics to atomize water into a fine mist. This mist generates substantial kinetic energy at sonic speeds, creating a continuous spray pattern that covers the nozzles. The forceful spray effectively removes dirt from both the exterior and interior surfaces of the nozzles. Specifically designed for cleaning small components, such as those with sizes 0603, 0402, 0201, and 01005, as well as high-precision nozzles, this machine guarantees thorough and meticulous cleaning.
Product Features:
Elegant Aesthetic & Premium Material:
The machine boasts an exquisite design, with its body crafted from high-precision 304 stainless steel for exceptional durability.
Enhanced Efficiency & Energy Efficiency:
Capable of simultaneously cleaning up to 30 nozzles, the machine maximizes efficiency while minimizing energy usage.
Universal Cleaning Capability:
Suitable for cleaning all types of nozzles, including cross-type, I-shaped, and specialized shapes, ensuring consistent and highly effective cleaning results.
Cutting-Edge Cleaning Technology:
Featuring atomized water flow and supersonic spraying, it meticulously removes dirt and impurities that ultrasonic waves might overlook, ensuring even the finest nozzle openings are thoroughly cleaned.
Intuitive Operation:
The machine is designed for ease of use, featuring an English-language interface for global user accessibility.
Transparent Cleaning Monitoring:
An inspection window enables users to observe the entire cleaning process in real time.
Environmentally Friendly Cleaning Agent:
Utilizing D.I. (deionized) water as the cleaning solvent, it poses no risk to nozzles or reflector panels.
Stable & Dependable Control:
Equipped with a touchscreen and a PLC (Programmable Logic Controller) distributed control system, the machine guarantees stable and reliable operation.
Specification:
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Application scenarios:
Size:
