Automatic Screw Fastening Machine with Panasonic Servo Motor for Precise Screw-Locking

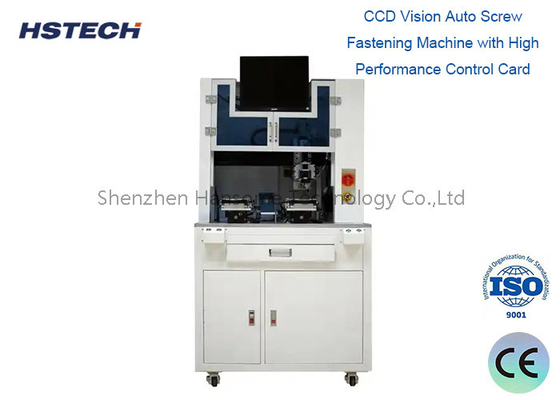

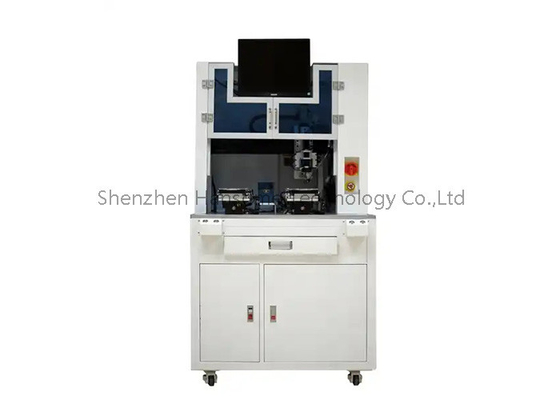

Visual CDD Automatic Screw Fastening Machine with Panasonic Servo Motor

Introduction

This cutting-edge screw-locking machine integrates advanced CCD positioning technology and is fully compatible with Windows, offering visual assistance throughout the screw-fastening process. It features the HIWIN P-Class KK slide module and is powered by a dependable Panasonic servo motor. The machine comes with a customized nail feeder that prevents nail jams, ensuring smooth and uninterrupted operation.

A precision laser positioning sensor ensures accurate detection of the locking height, while a servo-driven intelligent electric screwdriver guarantees precise screwing. Furthermore, a high-performance motion control card coordinates all movements seamlessly, ensuring smooth and efficient operation. In summary, this machine provides unparalleled precision and reliability for screw-locking applications.

Application

This automatic screw-locking machine, utilizing CCD technology, is extensively applied in securing casings for a wide variety of products, ranging from smartphones, power adapters, PCB electronics, and batteries to small household appliances, Wi-Fi routers, power supplies, toy wheels, automotive components, and many other small electronic devices. Its versatility and high precision render it an optimal choice for numerous applications.

Main components

Feeding System: The automatic feeding device ensures a consistent supply of screws, thereby minimizing downtime.

Drive System: Equipped with either an electric or pneumatic drive, it provides stable torque and speed performance.

Control System: User-friendly control and monitoring are facilitated through PLC or touch screen operation.

Application areas

Electronics Manufacturing: Efficient and rapid screw tightening during circuit board assembly is essential for ensuring reliable connections.

Automotive Industry: Fastening screws on body parts and interior components significantly enhances assembly efficiency.

Home Appliance Production: This technology augments automation in the manufacturing of washing machines, refrigerators, and various other household appliances.

Advantages

Enhance Efficiency: Substantially elevate production speed and abbreviate the production cycle.

Minimize Labor Costs: Reduce dependence on manual labor and mitigate worker fatigue.

Ensure Consistency: Guarantee uniform tightening quality for every screw, minimizing errors stemming from human factors.
