| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

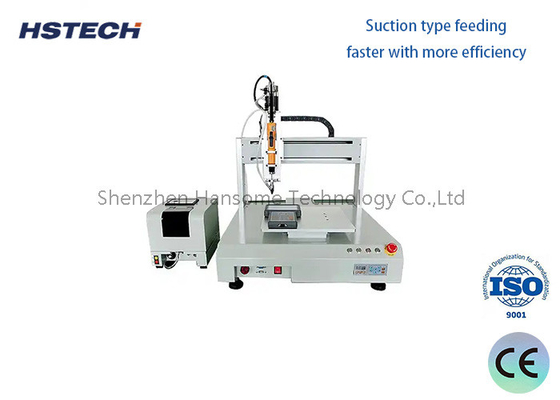

Desktop Screw Fastening Machine with ±5mm Accuracy
Introduction
This screw locking machine achieves automatic conveying, tightening, and testing of screws by utilizing various electric and pneumatic components.
By utilizing this equipment, we can minimize manual intervention and reduce the adverse effects caused by human error. It serves as a quintessential example of customized automation equipment.
Features

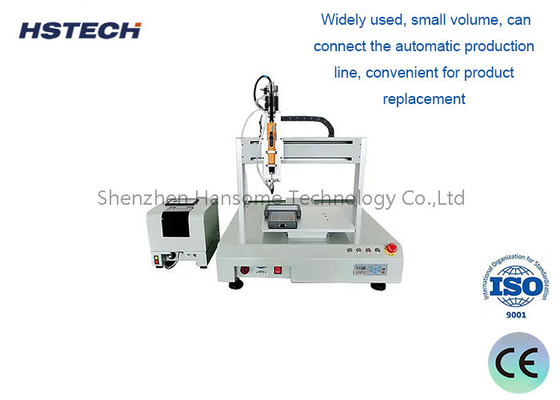

The machine features an intuitive desktop operation, allowing seamless integration with production line workflows and facilitating easy product replacements.
The Y-axis can be customized with a double station (dual Y-axis) based on requirements, enabling operators to switch between products effortlessly.
This equipment is primarily designed to lock screws ranging in size from M1 to M5.
It supports the input of CAD documents for enhanced functionality and precision.
The automatic screw feeding machine is compatible with screws of similar sizes, with a length variation tolerance of ±5 mm.
Specfication
| Model | HS-SL5331 |
| Voltage | AC110V/220V,50/60Hz,Meanwell brand |
| X/Y1/Y2/Z working range | 500/300/300/100mm |
| XYZ speed | Max XY:600mm/s,Z:300mm/s |
| Y platform | 190*150mm |
| Repeat accuracy | 0.02mm |
| Motor | Stepper motor(Shinano Kenshi brand) |
| Driven system | Timing blet for X/Y, Z axis screw |
| Document support | CAD,CorelDRAW |
| Loading capacity | X/Y:10kg,Z:5kg |
| Linear Guide | HIWIN(Taiwan brand) |
| Photoelectric switch | (Germany brand) |
| Cylinder | AirTAC |
| Suitable screws | M1 - M5 |
| Machine size | 720*685*597mm |
| Gross weight | 75kg |
