| Brand Name: | HSTECH |
| Model Number: | HS-203 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
60W Power Foot Switch Upper Circular Blade And Bottom Linear Blade
Features:
It rapidly cuts regardless of quantity, making it highly economical.

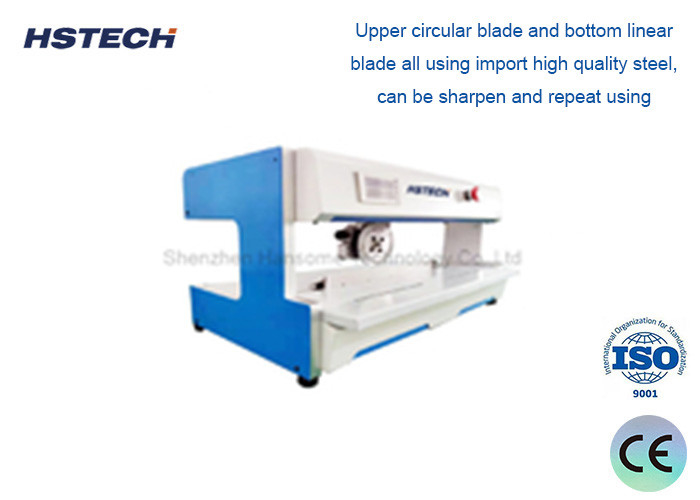

Both the upper circular blade and the bottom linear blade are made of imported high-quality steel, allowing for sharpening and reuse.
The moving range can be customized to (0400mm/600mm) as per customer requirements, and the circular blade can be adjusted (05mm) to suit different board thicknesses, solving the issue of varying V-cut grooves.
The maximum cutting width is unlimited, with optimal performance for single PCBs ranging from 1~200mm.
The operation platform can be adjusted based on the height of the PCB's upper components, with a standard machine height of less than 32mm.
It features a buzzer alarm protection system, as well as a light curtain and protective blade for double safety, ensuring operator safety and preventing injuries.
Specification:
| Model | HS-203 | HS-206 |
| Voltage | AC110V/220V 50/60Hz | |
| Blade size(circular blade) | ϕ125mm*30mm*3mm | |
| Blade size(linear blade) | 420mm×65mm×6mm | |
| Max cutting length | 5~400mm | 5~600mm |
| PCB thickness | 0.8~3mm | |
| Separation speed | 300~500mm/second(adjustable) | |
| Separation width | Best 1~200mm | |
| Components height | ≤32mm( or customized) | |
| Power | 60W | |
| Machine dimension | 710x450x420mm | 900x450x420mm |
| Weight | 55kg | 75kg |
Board samples(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board, LED board, LED strip board)
