| Brand Name: | HSTECH |
| Model Number: | HS-500LC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200 sets per month |
SMT Machine Parts PCB Lead Cutting Machine 8/10inch Blade Max 250mm Width AI Machine
Introduction
This machine is designed to trim the excess leads or feet of PCBAs after wave soldering. It mainly consists of two parts: PCB fixation and blade fixation. The PCB is conveyed by a chain and securely clamped on both sides, with an additional thimble placed at its base to enhance stability. Once the blade is securely positioned and its height is adjusted accordingly, the PCB is transported for automated lead trimming. The blade rotates swiftly and smoothly, producing minimal noise while maintaining high operational efficiency. Furthermore, a warp prevention device is incorporated to ensure that the PCBA boards remain intact throughout the process.
Feature
It employs an eagle-claw-style shrapnel fixture for automated clamping and feeding of PCB boards, guaranteeing robust stability. The plate feeding speed is adjustable, and the spindle operates at high speeds with low noise, precision, and effectiveness.
This model features a pair of conveyor chains that securely clamp and transport PCBAs to a rapidly rotating blade for efficient trimming.

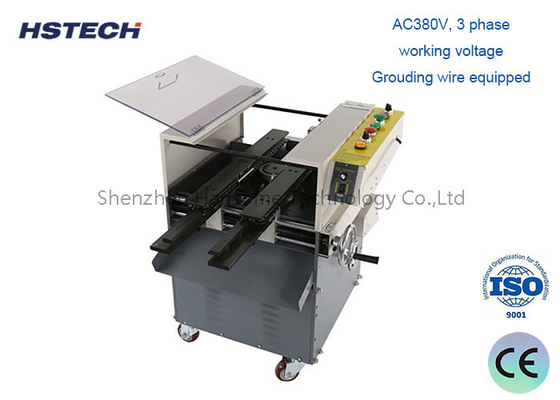

The machine operates on AC380V, 3-phase power, and includes a grounding wire for enhanced safety.

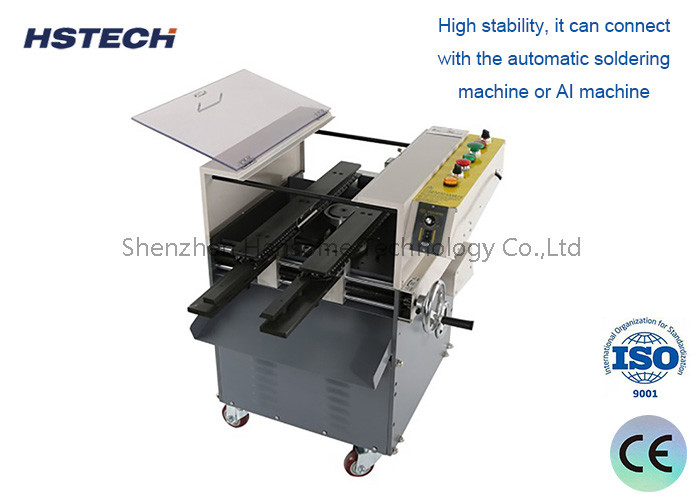

This machine is compatible with automatic soldering machines or AI machines for seamless integration.
Renowned for its high stability, this machine integrates effortlessly with automatic soldering machines or AI machines.
A bending prevention device is installed to counteract PCB bending during the welding process.
The input speed is adjustable, with a maximum velocity of 3 meters per minute.
Specification
| Model | HS-500LC |
| Power | AC220, 50/60Hz/380V,50/60Hz |
| Max. PCB size | 400mm(L) x 250mm(W) |
| Main axis speed | 4500/Min |
| Main axis motor | 3/4 Hp |
| Guide rail speed | 0-3 M can be adjustable |
| Min. lead height | 1.0-1.5mm Min |
| Machine Demension | 750*600*860mm(W*D*H) |
| Net Weight | 115KG |
We offer a comprehensive range of not only SMT machines and equipment but also a multitude of machine parts. As a supplier, we specialize in providing smt machine parts and equipment, encompassing items such as Feeders, Nozzles, PCB board turnover carts, SMT grease, Solder paste mixers, SMD counters, Laser Sensors, Filters, KIC thermal profilers, Servo Motors, and more.
Shenzhen Hansome Technology Co., Ltd. (HSTECH) is a professional manufacturer of SMT board handling equipment, including Loaders, Unloaders, Buffers, Conveyors, and other related products. As a high-tech enterprise with independent intellectual property rights, our company focuses on the research, development, production, and sales of board handling equipment for SMT/THT production lines.
