| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
Features
Versatile and Space-Efficient:
This unit offers broad applicability coupled with a compact size, making it easy to integrate into automated production lines. Its user-friendly design enables quick product changes, boosting both production flexibility and efficiency.
Advanced Inspection Features:
Armed with a high-tech inspection system, it automatically identifies and alerts issues such as missing locks, unstable locks, and loose screws, thereby guaranteeing precision and reliability in every stage of production.
Enhanced Operator Workflow:
Thanks to its double Y-platform design, operators can seamlessly switch between loading and unloading parts, smoothing their workflow and maximizing overall productivity.
| Model | HS-SL5331 | |

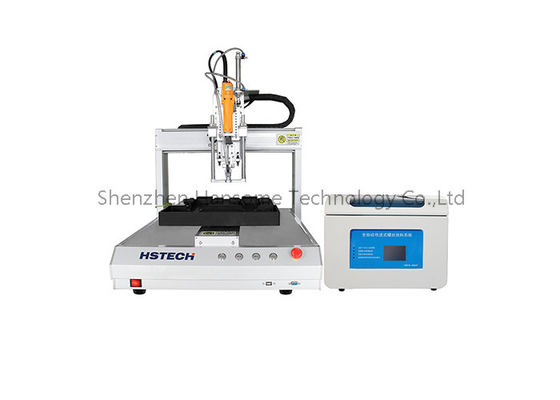

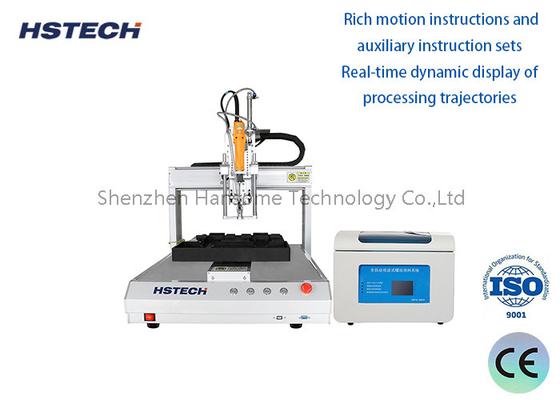

| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
About Product
About Details
SMT production line equipment
Universal SMT Machine: This machine utilizes programs edited on the device to place components onto designated positions. It can handle SOP 28-pin or higher components (including those mountable by high-speed machines), accommodating roll, disc, or tubular packaging. It is characterized by high precision and versatility, albeit with a slower installation speed compared to high-speed machines.
Reflow Soldering: This process involves using SMT solder paste or red glue and setting an appropriate temperature curve to achieve soldering between the solder paste and the component.
Unloading Station: Boards are loaded into the magazine via a conveyor track.
