| Brand Name: | FUJI |
| Model Number: | H01/H02/H08M/ RH01/ RH02 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 reels per month |

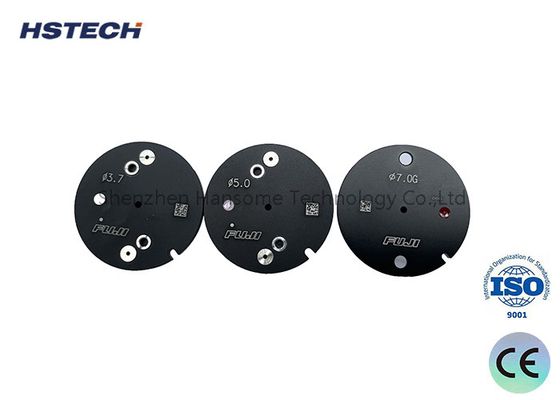

High-Precision SMT Nozzle for FUJI H01/H02 5.0 7.0GH08M RH01 RH02 Pick And Place Machine
SMT FUJI Nozzle
The nozzle plays a vital role in SMT equipment, particularly in automatic placement machines, as it is responsible for accurately picking up and conveying electronic components. This, in turn, facilitates the automated process of placing components using surface mount technology (SMT).
Overview:
FUJI, a well-known supplier of electronic manufacturing equipment, provides nozzles that are widely used in SMT assembly processes. These nozzles serve as the crucial component of the placement machine, tasked with lifting electronic components from the feeder tray and placing them accurately onto the PCB board.
Working principle
Vacuum System:
The placement machine is equipped with an internal vacuum pump capable of generating a powerful suction force. This vacuum pump is connected to the nozzle through a tubing system, forming a vacuum negative pressure system.
Nozzle Structure:
The nozzle comprises a nozzle head, a gasket, a nozzle cover, and other integral parts. The central orifice of the nozzle head is linked to the vacuum system to induce negative pressure.
Suction Process:
When the nozzle head approaches an electronic component, the negative pressure created by the vacuum system draws the component towards it. The gasket and nozzle cover work in tandem to seal the nozzle head, preventing any gas leakage that might compromise the suction.
Placement Process:
Once the component is securely held by the nozzle, the placement machine precisely positions it at the designated spot on the PCB. Throughout this placement, the negative pressure maintains a firm grip on the component. Upon completion of placement, the negative pressure is released, allowing the component to be effortlessly detached from the nozzle.
Main features
Precision Suction Capability
The FUJI Nozzle employs cutting-edge vacuum adsorption technology to precisely engage with SMD components of diverse sizes and shapes.
Its robust suction force and unparalleled reliability prevent components from detaching during the placement process.
Exceptional Durability
Crafted from premium metal materials, the nozzle body exhibits exceptional resistance to high temperatures and wear.
This ensures a lengthy lifespan, significantly minimizing the need for maintenance and replacement, thereby reducing associated costs.
Versatile Adaptability
The FUJI Nozzle series boasts a wide array of specifications and sizes, seamlessly accommodating various models of automated mounting equipment.
Quick nozzle interchanges facilitate the fulfillment of diverse production requirements.
Enhanced Production Efficiency
The combination of high-speed and precise suction and placement operations significantly boosts the overall efficiency of the SMT production line.
This reduction in manual interventions helps lower labor costs.
Nozzle material:
| Tungsten steel nozzle | Tungsten steel nozzle is strong and durable, but it is easy to turn white. If it turns white, use an oil-based pen to paint it, and you can continue to use it. |
| Ceramic nozzles | Ceramic nozzles never turn white, but are brittle and easy to break. Careful use can avoid or reduce breakage. |
| Diamond steel nozzle | It is strong, easy to use, and will never turn white, but it is very expensive and not cost-effective. |
| Glue nozzle | When the surface of the material is uneven or the material is sticky, it is suitable to use the glue nozzle. However, the life of the glue nozzle is not long. It is recommended to buy more glue nozzles for spare when ordering the glue nozzle. When the nozzle is worn, you can just replace it with the rubber nozzle yourself |
Main application scenarios:
SMT Assembly Line: FUJI nozzles are extensively utilized in diverse pick-and-place equipment within SMT production lines.
Electronic Product Manufacturing: They are employed for precisely placing components in electronic devices such as mobile phones, computers, and household appliances.
Medical Device Assembly: These nozzles are used for installing components in high-precision medical instruments.
Aerospace Industry: They play a role in the assembly of electronic equipment for aerospace applications.
FUJI NXT Series NOZZLE:
NXT H08(H12) 2.5G nozzle,
AA73500 NXT H08(H12) 0.7 nozzle,
AA08500 NXT H01 3.7G nozzle,
AA08400 NXT H01 2.5G nozzle,
AA08300 NXT H01 20.0 nozzle,
AA08200 NXT H01 15.0 nozzle,
AA08100 NXT H01 10.0 nozzle,
AA08000 NXT H01 7.0 nozzle,
AA07900 NXT H01 5.0 nozzle,
AA07600 NXT H01 20.0G nozzle,
AA07400 NXT H01 10.0G nozzle,
AA07300 NXT H01 7.0G nozzle,
AA07200 NXT H01 5.0G nozzle,
AA07100 NXT H01 3.7 nozzle,
AA07000 NXT H01 2.5 nozzle,
AA06900 NXT H01 1.8 nozzle,
AA06400 NXT H08(H12) 1.3M nozzle,
AA06400 NXT H08(H12) 1.3G nozzle,
AA06300 NXT H08(H12) 5.0G nozzle,
AA05800 NXT H08(H12) 1.0 nozzle,
AA05800 NXT H01 1.3 nozzle,
AA05700 NXT H08(H12) 0.7 nozzle (0.7X0.5),
AA05600 NXT H08(H12) 0.4 nozzle (0.45X0.3),
AA20E00 NXT H08(H12) 5.0 nozzle,
AA20D00 NXT H08(H12) 3.7 nozzle,
AA20C00 NXT H08(H12) 2.5 nozzle,
AA20B00 NXT H08(H12) 1.8 nozzle,
AA20A00 NXT H08(H12) 1.3 nozzle,
AA19G00 NXT H08(H12) 1.8G nozzle,
AA18C00 NXT H08(H12) 3.7G nozzle,
AA11R00 NXT H01 1.8G nozzle,
AA08C00 or AA07L00 or AA07W00 or AA07D00 NXT H04 10.0 nozzle,
All item of nozzle for FUJI Pick and Place Machine
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
