Flexible And Easy-to-Operate V-Cut Blade PCB Separator PCB Depaneling Equipment

 Easy to Operate V-Cut Blade PCB Separator PCB Depaneling Equipment with 400mm Length

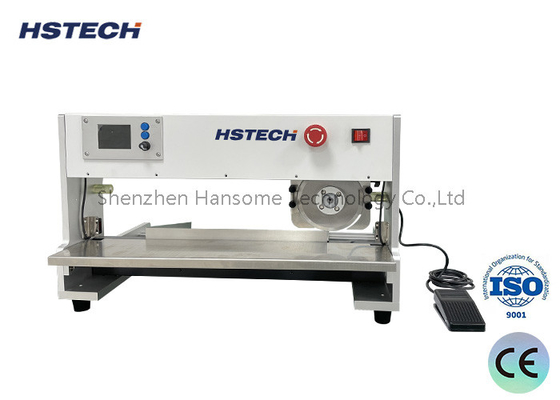

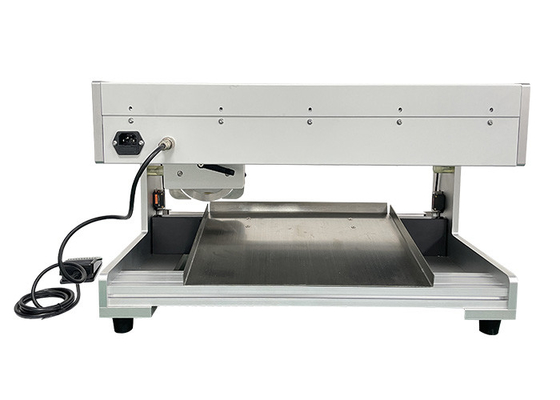

The HS-300 machine, a PCB separator, functions through the movement of blades, featuring an upper circular blade and a lower linear blade in its design. Before the cutting process begins, the v-groove is aligned precisely with the linear blade. Subsequently, the upper circular blade moves to effectuate the separation. This method necessitates relatively minimal force, allowing the board to remain stable during the operation. Consequently, the components mounted on the board are safeguarded from any potential harm.

High-Precision Cutting:

• The V-shaped tool design delivers precise and clean cutting edges.
• The sophisticated CNC system guarantees the precision of the cutting trajectory.

High Efficiency:

• Automated processes significantly enhance productivity and reduce labor expenses.
• Supports batch processing, ideal for small to medium-sized production runs.

Versatility in Material Application:

• Capable of cutting not only PCB boards but also a range of materials including plastics and metals.
• Offers flexible tool options tailored to the processing requirements of various materials.

Safety and Reliability:

• Incorporates safety protection measures to effectively prevent operator injuries.
• Features stable cutting performance and mechanical structure, ensuring sustained and efficient operation.

Ease of Operation:

• Features a straightforward and intuitive control interface, facilitating operator proficiency.
• Cutting parameters can be customized based on specific needs.

Features

1. This machine is capable of cutting various types of boards featuring v-slots.

2. The blade is designed for durability and can be reshaped at least twice.

3. The height of the circular blade can be adjusted to accommodate different types of PCBs with varying component heights.

4. Blade movement requires relatively low force, controlled by a single motor, making operation easy and convenient.

5. Equipped with an induction function, the machine will halt operation if the operator touches the area where the blade is moving.

6. Safety is ensured with a double protective device, eliminating concerns about production safety.

7. Built to last, the machine utilizes high-quality blades made from superior materials.

Specification
