N510042737AA Z Axis Motor with AC Servo Motor for CM402 CM602 Machine SMT Machine Parts

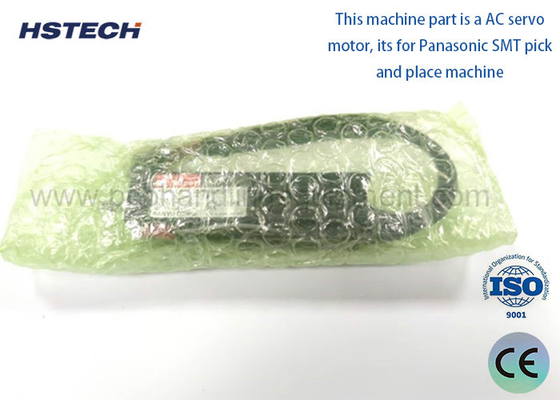

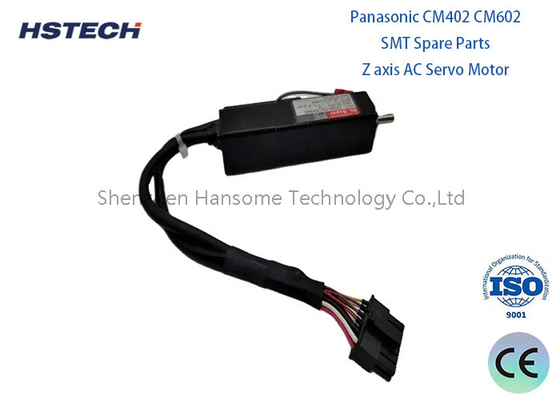

Original Panasonic N510042737AA Z Axis Motor with AC Servo Motor for CM402 CM602 Machine

Introduction

This component is custom-designed for Panasonic's CM402 and CM602 pick-and-place machines, serving as an AC servo driver that powers and controls the Z-axis movement to ensure accurate and efficient operation.

High-Precision Positioning Capability
The stepper motor features a precision design, capable of achieving an accuracy of 0.01mm in positioning. This makes it perfect for applications requiring fine positioning adjustments.

Powerful Torque Output
With a rated torque of 2.4N·m, the motor handles heavy vertical axis loads effortlessly, ensuring robust performance across various conditions.

High-Speed Response
The stepper motor boasts a swift response drive performance, reaching up to 500 steps per second, ensuring rapid and efficient operation.

Reliability and Longevity
Crafted with a sturdy metal shell, the motor's mechanical structure is robust, reliable, and durable. Its excellent anti-vibration properties further enhance its lifespan.

Simplified Control
The motor integrates seamlessly with various drive controllers and supports standard pulse/direction control interfaces, making the control process straightforward.

Compact and Space-Saving Design
With compact dimensions of 42mm x 42mm x 60mm, the motor easily fits into a wide range of devices without compromising performance.

Versatile Applications
The motor is widely used in 3D printers, CNC machine tools, automation equipment, and other fields requiring high-precision vertical axis drives.

Specification

N510056943AA LINEAR MOTOR,DC 6W
N510008188AA DC SERVO MOTOR,50W
N510042737AA DC SERVO MOTOR,15W
KXF0E1LXA00 DC SERVO MOTOR,50W
N510042738AA DC SERVO MOTOR,20W
N510042739AA DC SERVO MOTOR,25W
N510042740AA DC SERVO MOTOR,3W
N610027892AA REGULATOR
KXFX03EJA00 REGULATOR

KXFYGC00014 MOTOR
KXFYGC00008 MOTOR
N510037999AA MOTOR

N510015534AA MOTOR
