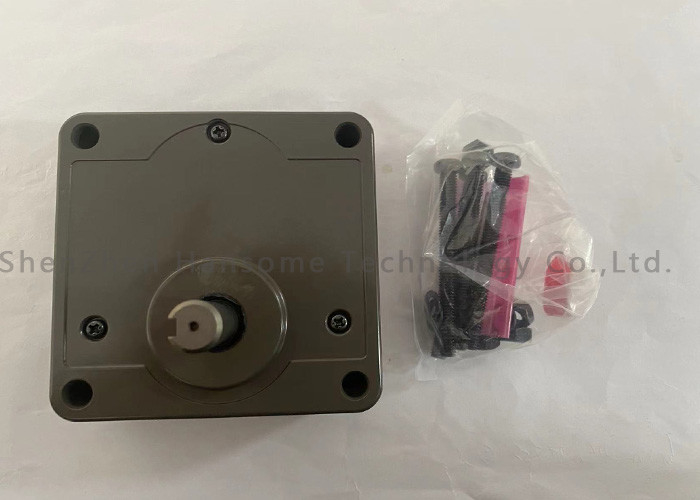

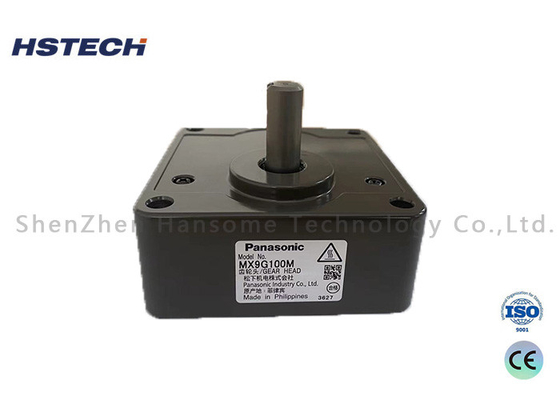

Highly Accurate And Quiet Operation SMT Machine Parts Panasonic Reducer MX9G100M

Panasonic MX9G100M Reduktor SMT Machine Parts for Material Handling Equipment

Introduction

The Panasonic reducer serves as a mechanical transmission device primarily used to decrease the rotational speed of motors or other driving mechanisms, while concurrently boosting their output torque. It has widespread applications in industrial automation, machinery, robotics, and numerous other sectors.

Main features:

1. Precision: By utilizing advanced manufacturing technology, the Panasonic reducer offers an exceptionally precise input-to-output speed ratio.
2. Torque Capacity: Thanks to its optimized structural design, the reducer is capable of delivering significant torque output.
3. Reliability: Built with superior materials and precision manufacturing techniques, the Panasonic reducer guarantees long-lasting and dependable performance.
4. Quiet Operation: Due to its refined design, the reducer operates with minimal noise levels.
5. Compact Size: With its small footprint, the Panasonic reducer allows for easy installation and seamless integration into various systems.

Basic structure:

It utilizes a planetary gear reduction mechanism design that features a planetary carrier, a sun gear, multiple planetary gears, an internal ring gear, and other vital components.

Manufactured from high-strength alloy steel, the transmission parts are guaranteed to be robust and durable.

Internally, an advanced lubrication system is incorporated to ensure consistent and reliable operation over an extended period.

Main feature:

Extensive transmission ratio range: A versatile selection of reduction ratios, spanning from 3.7 to 100, is offered.
Impressive load-bearing capacity: Capable of achieving a maximum output torque of 100N·m, making it ideal for heavy-duty applications.
Efficient transmission: With an efficiency rating of up to 94%, it significantly enhances the overall energy efficiency of the machinery.
Compact and lightweight: Compared to traditional gearboxes with equivalent transmission power, it boasts a much smaller size and lighter weight.
Quiet and smooth operation: The unique design of the deceleration mechanism ensures extremely low noise and vibration levels during operation.
High durability: Crafted from high-quality materials and utilizing advanced manufacturing techniques, it guarantees a long service life and high reliability.

The main function:

Serving as the pivotal drive transmission component for robot joints and industrial equipment, it plays a crucial role.

It efficiently converts the high speed of the motor to the desired low speed while simultaneously delivering high torque.

When paired with servo motors, it enables precise control over speed and position.

Offering multiple installation options, it can be seamlessly integrated into various devices with flexibility.

Both standard models and customized solutions are available to meet customer-specific requirements.

Application scenarios:
Widely used in industrial robots, AGVs, lifts and other automation equipment.
Automation equipment used in various industrial manufacturing, packaging, logistics and other fields.
It can also be used in other industrial equipment and robotic arms that require precision transmission.

1.Planetary gear reducer series:

2.Worm gear reducer series:

3.Rectangular reducer series:

4.Harmonic reducer series:
