| Brand Name: | JUKI |
| Model Number: | JUKI 502 KE2000 series |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |

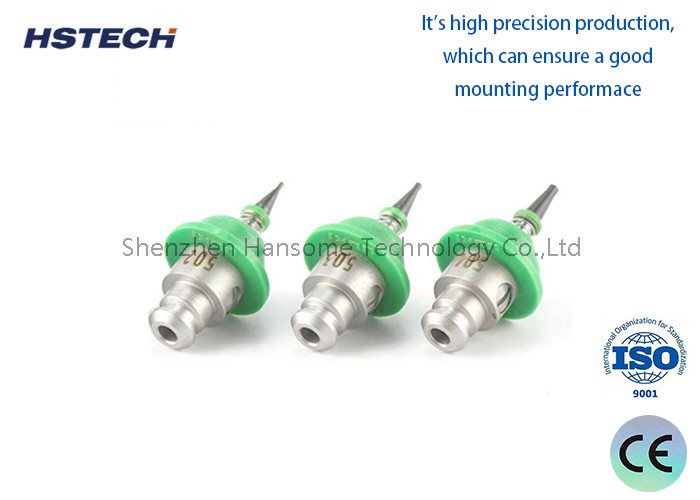

High Speed 502 2000 Series Nozzle Head JUKI SMT Nozzle for Components Suction
Juki Nozzle:
The 502 nozzle serves as an authentic or compatible new alternative for outdated nozzles found in chip mounting equipment. As a high-precision tool, it excels in precisely suctioning components. Made from superior-grade tungsten steel, it ensures a durable and long-lasting performance.
Overview:
JUKI is a renowned provider of electronic manufacturing equipment, with its nozzle products being extensively utilized in the SMT (Surface Mount Technology) assembly processes. The nozzle serves as a pivotal component within the placement machine, tasked with lifting electronic components from the feeder tray and precisely positioning them onto the PCB (Printed Circuit Board).
Features of JUKI nozzles:
Diverse Product Range: JUKI offers nozzles in varying sizes, shapes, and materials to accommodate a wide array of components.
Precision Positioning: The nozzle ensures accurate component placement, safeguarding the quality of the assembly process.
Durability: Constructed from premium materials, the nozzles boast an extended service life due to their resistance to wear.
Ease of Maintenance: Quick replacement and cleaning capabilities minimize downtime, enhancing operational efficiency.
Main application scenarios:
SMT Assembly Line: JUKI nozzles find extensive application in various types of placement machines.
Electronic Product Manufacturing: They are utilized for the precise placement of components in electronic devices such as mobile phones, computers, and household appliances.
Medical Device Fabrication: These nozzles are employed for installing components in high-precision medical equipment.
Aerospace Assembly: They play a crucial role in the assembly of electronic modules within the aerospace industry.
Specifications
| Brand | JUKI |
| Parts number | E36017290A0 |
| Nozzle type | 502 |
| Chip mounter | 20000series |
| Nozzle size | 31x16mm / 1.22x0.63 inch(Height x Diameter) |
| Nozzle color | Sliver and green |
| Material | Ceramic+Tungsten steel+Rubber |
| Weight | 8g |
| Package | Customized Blister |
Features
Crafted from premium materials including ceramic, tungsten steel, and rubber, these nozzles offer superior mounting performance and a prolonged lifespan.
The nozzles are securely packaged in customized blister packs to prevent damage during transportation.
Featuring a standard size with zero tolerance for error, these nozzles exhibit high precision.
Designed in eco-friendly green and silver hues, these nozzles not only look appealing but also contribute to environmental protection.
Ideal for suction and placement of various components, including cathode capacitors, diodes, SOTs, QFNs, BGAs, and more.

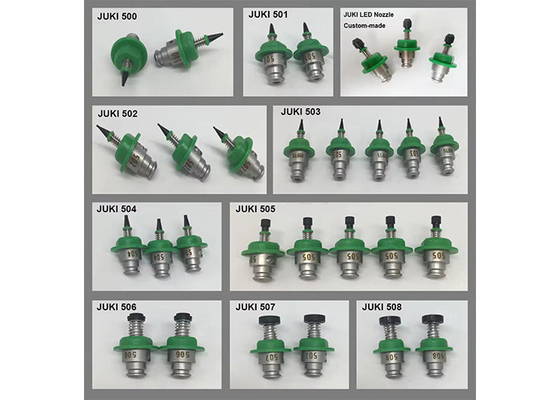

JUKI 2000 Series nozzle models
E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
