| Brand Name: | HSTECH |
| Model Number: | HS-800 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

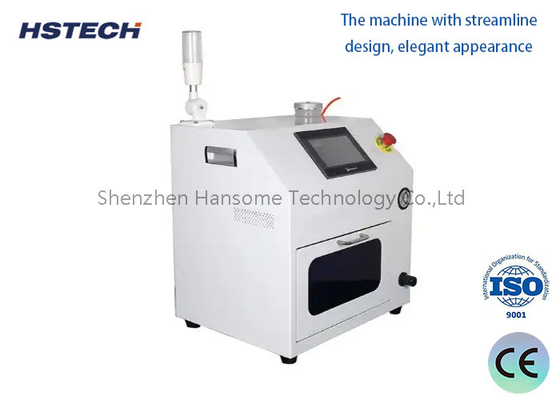

High Pressure SMT Mounting Suction Vacuum Nozzle Cleaner Smart Washing Machine
Introduction:
The HS-800 nozzle cleaning machine efficiently automates the cleaning and drying process. It utilizes a multi-nozzle spraying technique, employing fluid mechanics to atomize water into a fine mist. This mist generates significant kinetic energy at sonic speeds, forming a continuous spray pattern above the nozzles. The powerful spray effectively removes dirt from both the exterior and interior surfaces of the nozzles. Primarily designed for cleaning small components, including those of sizes 0603, 0402, 0201, and 01005, as well as high-precision nozzles, this machine ensures thorough cleaning.
Product Features:
Elegant Design & High-Quality Material: Featuring an elegant appearance, the machine body is crafted from high-precision 304 stainless steel for durability.

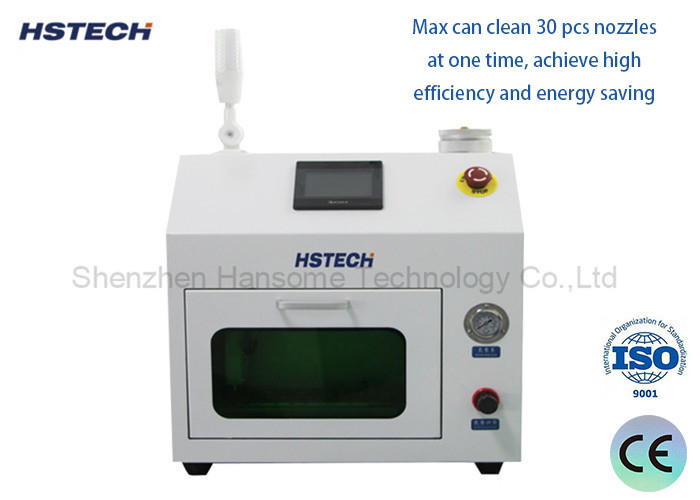

High Efficiency & Energy Savings: Capable of cleaning up to 30 nozzles simultaneously, the machine optimizes efficiency and minimizes energy consumption.
Versatile Cleaning: Suitable for all types of nozzles, including cross-type, I-shaped, and special shapes, ensuring consistent and effective cleaning performance.
Advanced Cleaning Technology: Equipped with atomized water flow and supersonic spraying, it thoroughly removes dirt and impurities that ultrasonic waves may miss, ensuring even the smallest nozzle holes are pristine.
User-Friendly Operation: The machine is easy to operate, with an English interface for global accessibility.
Visible Cleaning Process: An inspection window allows users to monitor the entire cleaning process in real-time.
Eco-Friendly Cleaning Solvent: Utilizing D.I (deionized) water as the cleaning solvent, it poses no harm to nozzles or reflector panels.
Stable & Reliable Control: Equipped with a touchscreen and PLC (Programmable Logic Controller) distributed control system, the machine offers stable and reliable performance.
Specification:
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Application scenarios:
Size:
