Visual CDD Screw Fastening Machine for Swift in Electronics Manufacturing

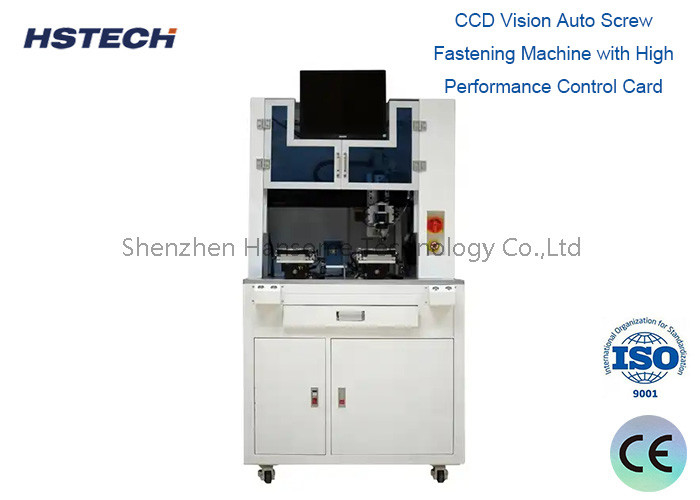

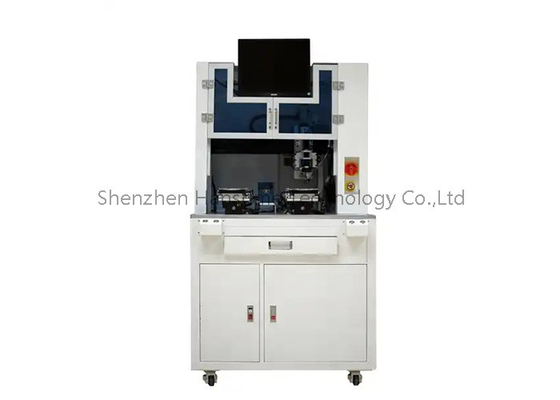

Visual CDD Automatic Screw Fastening Machine with Panasonic Servo Motor

Introduction

This state-of-the-art screw-locking machine incorporates advanced CCD positioning technology and is fully compatible with Windows, providing a visual aid throughout the entire screw-fastening process. It boasts the HIWIN P-Class KK slide module and is powered by a reliable Panasonic servo motor. The machine is equipped with a customized nail feeder designed to prevent nail jams, ensuring smooth operation.

A precision laser positioning sensor ensures accurate detection of the locking height, while a servo intelligent electric screwdriver guarantees precise screwing. Additionally, a high-performance motion control card coordinates all movements seamlessly, ensuring smooth and efficient operation. Overall, this machine offers unparalleled precision and reliability in screw-locking applications.

Application

This automatic screw-locking machine, which leverages CCD technology, is widely used for securing casings on a diverse array of products, including smartphones, power adapters, PCB electronics, batteries, small household appliances, Wi-Fi routers, power supplies, toy wheels, automotive components, and numerous other small electronic gadgets. Its versatility and precision make it an ideal solution for a broad range of applications.

Main components

Feeding System: The automatic feeding device guarantees a continuous supply of screws, minimizing downtime.

Drive System: It features either an electric or pneumatic drive, offering consistent torque and speed.

Control System: Operated via PLC or touch screen for user-friendly control and monitoring.

Application areas

Electronics Manufacturing: Swift screw tightening during circuit board assembly is crucial for reliable connections.

Automotive Industry: Fastening screws on body parts and interior components enhances assembly efficiency.

Home Appliance Production: This technology boosts automation in the production of washing machines, refrigerators, and other home appliances.

Advantages

Enhance Efficiency: Dramatically boost production speed and shorten the production cycle.
Minimize Labor Costs: Decrease reliance on manual labor and alleviate worker fatigue.
Ensure Consistency: Maintain uniform tightening quality for each screw, minimizing errors attributed to human factors.

Specfication
