| Brand Name: | HSTECH |
| Model Number: | HS-300 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |

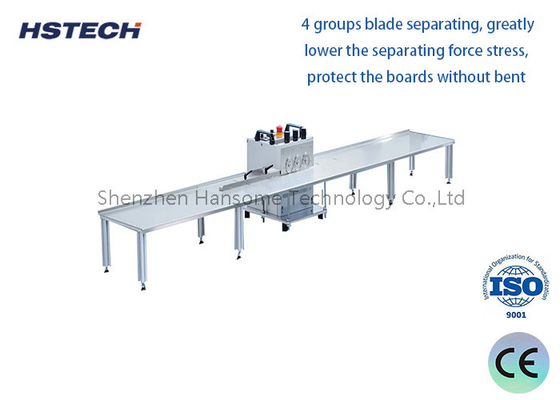

High Speed PCB Depaneling Equipment with 400mm Length and Circular Blade
Introduction
A PCB depaneling machine, also known as a singulation machine, involves the process of dividing large fabricated panels of printed circuit boards (PCBs) into individual PCB units. These machines play a crucial role in enhancing production efficiency, minimizing the risk of component damage, and guaranteeing a clean and precise separation.
Features
This machine is capable of cutting various types of boards featuring v-slots.

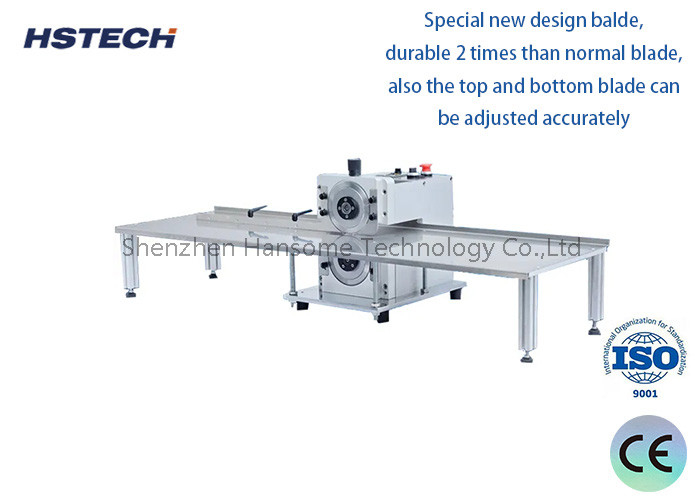

The blade is designed for durability and can be reshaped at least twice.
The height of the circular blade can be adjusted to accommodate PCBs with components of different heights.
Blade movement requires relatively low force and is controlled by a single motor, making operation easy and convenient.
Equipped with an induction function, the machine will halt operations if the operator touches the area where the blade is moving.
It is safe, featuring double protective devices, eliminating concerns about safety during production.
It is durable, utilizing high-quality blades made from superior materials.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
About Packaging
About Us:
Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.
HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
