| Brand Name: | Panasonic |
| Model Number: | MX9G100M |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pcs per month |

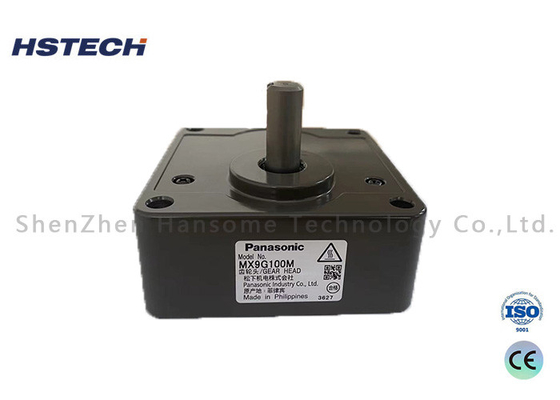

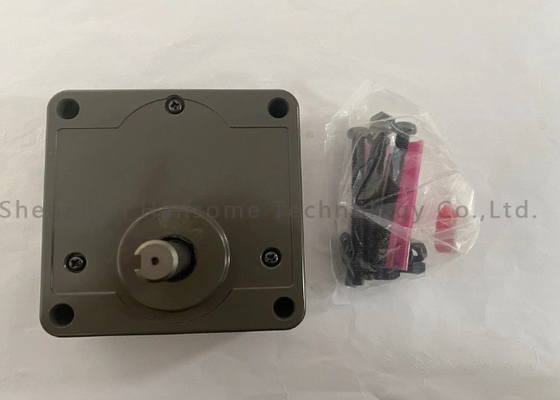

Panasonic MX9G100M Reduktor SMT Machine Parts for Material Handling Equipment
Introduction
The Panasonic reducer is a mechanical transmission device primarily utilized for reducing the output speed of motors or other driving devices while simultaneously enhancing the output torque. It finds extensive application in industrial automation, mechanical equipment, robotics, and various other fields.
Main features:
Precision: Leveraging advanced manufacturing technology, it delivers a highly accurate input/output speed ratio.
Torque Capacity: Its optimized structural design enables it to provide substantial torque output.
Reliability: Constructed with high-quality materials and precision manufacturing processes, it ensures long-term, dependable operation.
Quiet Operation: Thanks to its refined design, it operates with minimal noise.
Compact Design: Its small footprint facilitates easy installation and integration.
Basic structure:
It employs a planetary gear reduction mechanism design, comprising a planetary carrier, sun gear, planetary gears, internal ring gear, and other essential components.
Constructed from high-strength alloy steel, it guarantees the robustness and longevity of the transmission parts.
Internally, it incorporates an advanced lubrication system to ensure sustained and dependable operation over time.
Main feature:
Wide transmission ratio range: A wide range of reduction ratio options from 3.7 to 100 are available.
High load-bearing capacity: the maximum output torque can reach 100N·m, suitable for heavy-duty applications.
High-efficiency transmission: The efficiency is as high as 94%, which can significantly improve the energy efficiency of the entire machine.
Small size and light weight: The size and weight are much lower than traditional gearboxes with the same transmission power.
Low noise and low vibration: unique deceleration mechanism design, extremely low operating noise and vibration.
High reliability: Using high-quality materials and advanced manufacturing processes, it has a long service life.
The main function:
As the core drive transmission device for robot joints, industrial equipment, etc.
It can effectively reduce the high speed of the motor to the required low speed and high torque.
Used with servo motors to achieve precise speed and position control.
Supports multiple installation methods and can be flexibly integrated into different devices.
Standard models are available, and can also be customized according to customer needs.
Application scenarios:
Widely used in industrial robots, AGVs, lifts and other automation equipment.
Automation equipment used in various industrial manufacturing, packaging, logistics and other fields.
It can also be used in other industrial equipment and robotic arms that require precision transmission.
1.Planetary gear reducer series:
| Model | Features |
| MSME/MSMF | small and compact, mostly used for robot joint drive |
| MR | medium size, widely used in industrial automation equipment |
| MDP/MDV | large size, suitable for high power occasions |
2.Worm gear reducer series:
| Model | Features |
| MUNJ | small model, compact size |
| MUH | medium model, widely used in mechanical equipment |
| MUF | large model, suitable for heavy-duty occasions |
3.Rectangular reducer series:
| Model | Features |
| ME | small size, commonly used in robots and packaging equipment |
| MF | medium size, widely used in industrial automation |
| MUX | large size, suitable for heavy-duty applications |
4.Harmonic reducer series:
| Model | Features |
| SHG | small size, mainly used for robot joint drive |
| RV | medium and large size, widely used in industrial robots |
