Automatic Blade Moving Mini PCB Depaneling Equipment With PLC Control System

Introduction:

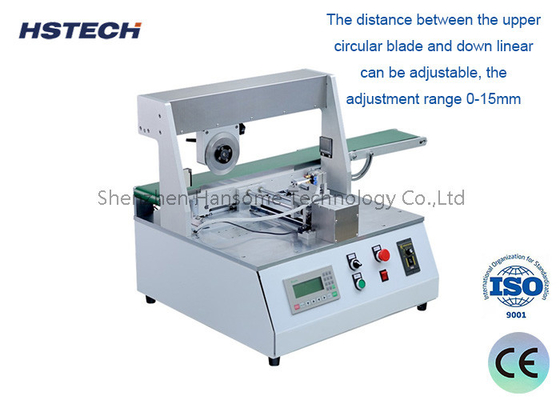

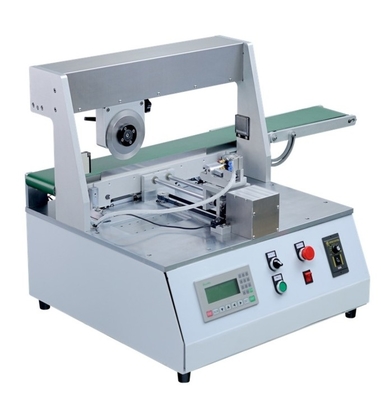

This automated PCB separation system features a seamless automatic feeding mechanism and incorporates an innovative design that pairs an upper rotating circular blade with a lower fixed linear blade. During the depaneling process, the PCB remains securely in place while the circular blade spins, effectively carrying out the separation task.

Advantages:

The traditional PCB separator, which relies on manual operation, is not only inefficient but also demands considerable labor. However, the newly designed automatic PCB separator transforms the process. Its microcomputer-controlled automatic feeding system can accommodate a variety of board sizes and integrates seamlessly with loaders. This innovation significantly reduces labor needs, enhances productivity, automates workflow processes, and optimizes overall output.

The main features are as follows:

1. Autonomous PCB Separation: The machine handles the entire PCB separation process from input to cutting to output autonomously, ensuring seamless and efficient automation.

2. High-Speed Cutting Capability: Equipped with high-speed CNC tools, it rapidly separates boards, achieving multiple cuts per minute to substantially boost productivity.

3. Precise Cutting Accuracy: Utilizing high-precision sensors and servo motor control, it ensures board separation within ±0.05mm, guaranteeing exceptional cutting precision.

4. Automated Material Handling System: The integrated silo and conveyor belt system automate the feeding and unloading of PCB boards, optimizing overall process efficiency and minimizing manual intervention.

5. Intelligent Control System: Based on PLC technology, the system offers customizable separation schemes for various board sizes and includes fault self-diagnosis for proactive maintenance, reducing downtime.

6. User-Friendly Operation Interface: The intuitive and straightforward interface simplifies operation, while the compact and modular design facilitates easy maintenance and prolongs the equipment's lifespan.

Main features
Automated operation
The automated system enables rapid separation of PCBs, reduces manual operations, and improves production efficiency.

Precise cutting
The blade movement technology is used to accurately separate PCBs along the V-Cut gap to ensure cutting quality and integrity.

High efficiency
Able to process a large number of PCBs in a short time, suitable for large-scale production needs.

User-friendly interface
Equipped with an operation panel and display for easy monitoring and setting, the operation is simple and intuitive.

Safety design
Equipped with multiple safety protections to prevent accidental start-up or operation, ensuring the safety of operators.

Adjustable cutting parameters
Users can adjust the cutting depth and pressure according to the thickness and material of different PCBs.
