| Brand Name: | HSTECH |
| Model Number: | HS-DH6331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
High Precision Screw Fastening Machine for Automated Screw Assembly with Complex Positioning
Screw Locking Machine:

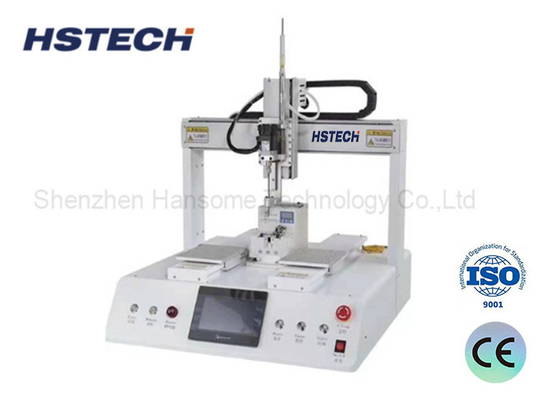

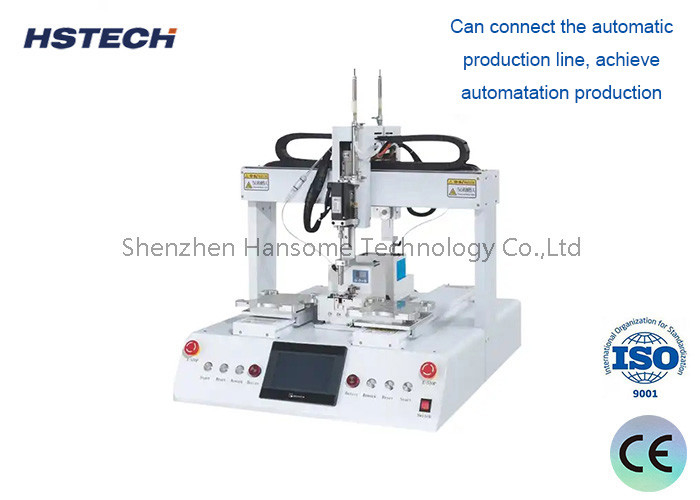

The screw machine is an advanced dual screw driver and dual platform system with a suction-fed automatic screw locking mechanism. It features a touchscreen interface and manual screw head positioning for easy setup, simplifying programming and cutting down setup time.
This revolutionary screw locking machine has transformed the industry by replacing traditional manual pendant programming machines. It's widely used in electronics and offers unmatched convenience and efficiency.
Compatible with screws from M1 to M6, it also supports special screws and offers customization to meet specific needs.
Features
It is utilized in automated screw assembly scenarios demanding high precision and intricate spatial positioning.
This system achieves coordinated movement of three linear and three rotary axes, enabling flexible screw positioning.
Its applications span complex product assembly in the automotive, electronics, home appliances, and other industries.
| Model | HS-DH6331 | |
| Production name | Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 600*300*300*100*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension8 | 880*585*800mm | |
| Machine weight | 120kg | |
Main parts brand
1, Motor: Shinano
2, Guide: Hiwin
3, Photoelectric switch: Omron
4, Power supply: Meanwell
