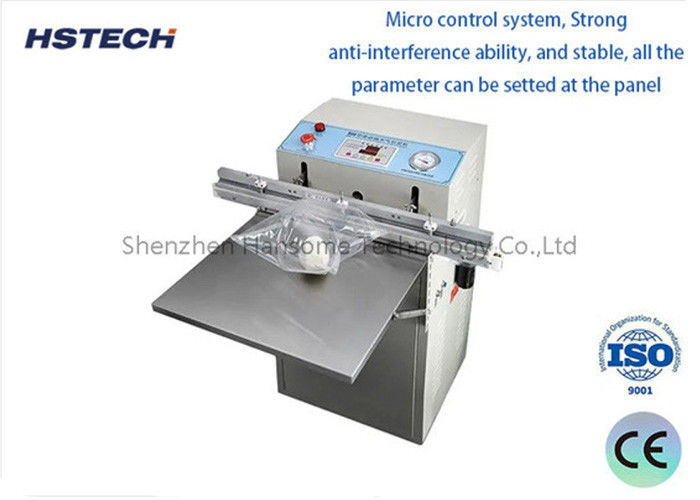

SMT Machine Parts Vacuum Packaging System 600mm Sealing Capacity amp Self-Diagnostic Syste

SMT Machine Parts Vacuum Packaging System 600mm Sealing Capacity amp Self-Diagnostic Syste

Brand Name: HSTECH
Model Number: VS-600WA
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Detail Information
Place of Origin:
China
Certification:
CE,RoHS
Product Name:
External Vacuum Packing Machine
Power Supply:
110V/220V,50/60Hz
Air Pressure:
-0.1Mpa
Power:
1.5KW
Application:
Electronic Products,Food,Commodity,Medical,Chemical,Machinery & Hardware
Packaging Details:
Wooden case, with foam
Supply Ability:
500 sets per month
Highlight:

600mm Sealing Capacity Vacuum Packaging System

,

Self-Diagnostic System Vacuum Packaging System

,

SMT Machine Parts Vacuum Packaging System

Product Description

VS-600WA Vacuum Packing System w/ 5~10mm Sealing Line Width & 110V/220V Power Supply



Introduction



This floor-mounted vacuum packaging machine stands out as an exceptional external vacuum packer, blending robustness with an attractive aesthetic appeal. Its exterior casing, which can be customized with a painted finish or upgraded to stainless steel, underscores both its durability and adherence to impeccable hygiene standards. The platform offers extensive adjustability, allowing users to tailor the height to their individual requirements for ergonomic comfort during operation. Additionally, the incorporation of silent wheels ensures smooth and effortless movement, making it easy to reposition within your workspace without any hassle.



Features



  1. Our vacuum packaging machine offers versatile air pressure supply options, accepting external pressure or incorporating an internal compressor for operational flexibility.
  2. Equipped with a self-diagnostic system, this standalone packaging solution alerts users to potential issues, ensuring a smooth and reliable experience.
  3. This versatile vacuum packer features a max sealing capacity of 600mm and a spacious 400x450mm worktable, ideal for packaging ICs, electronic components, PCBs, optoelectronic parts, LED lamps, FPCs, and plastic/tray-packaged smartphone/tablet screens, touch panels, wires, and connectors.



Specification



Model VS-600WA
Packing capacity 3-10 bags/min( based on product size)
Sealing size W600*W5~10mm(sealing line width, customized)
Max packing size L(unlimited)*W600*H(unlimited)
Machine size 670*460*1050mm
Platform size 400*450mm(can customized)
Power supply 110V/220V, 50/60Hz
Power 1.5KW
Air pressure 5-8kg(also can customized to no air pressure, make internal air compressor)
Ultimate vacuum -o.1Mpa
Weight 80kg
