High-Performance Motion Control Card Screw Fastening Machine with Panasonic Servo Motor

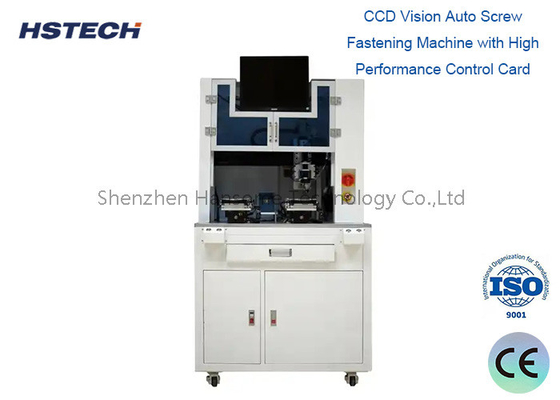

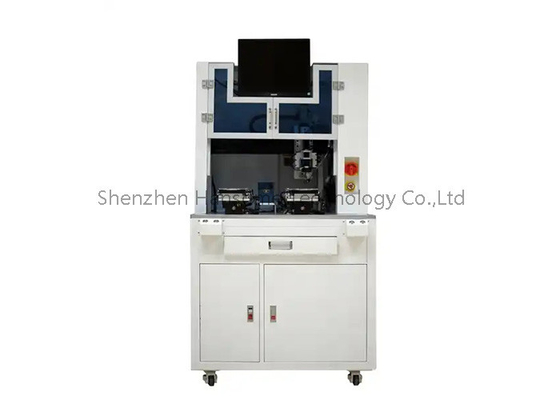

Visual CDD Automatic Screw Fastening Machine with Panasonic Servo Motor

Introduction

This cutting-edge screw-locking machine incorporates CCD positioning technology and is compatible with Windows, providing a visual assistance during the screw-fastening process. It is equipped with the HIWIN P-Class KK slide module and powered by a Panasonic servo motor, featuring a customized nail feeder to prevent blockages. A laser positioning sensor guarantees precise detection of the locking height. The servo intelligent electric screwdriver ensures accurate screwing, while a high-performance motion control card coordinates all movements flawlessly.

Application

This automatic screw-locking machine, equipped with CCD technology, is extensively used for securing casings of smartphones, power adapters, PCB electronics, batteries, small household appliances, Wi-Fi routers, power supplies, toy wheels, automotive components, and various other small electronic gadgets.

Main components

Feeding System: The automatic feeding device ensures a steady stream of screws, minimizing production interruptions.

Drive System: It comes with either an electric or pneumatic drive, delivering reliable torque and speed performance.

Control System: Operated through a PLC or touch screen interface for intuitive control and monitoring.

Application areas

Electronics Manufacturing: Swift screw tightening during circuit board assembly is crucial for ensuring reliable connections.

Automotive Industry: Fastening screws on body parts and interior components enhances assembly efficiency in the automotive sector.

Home Appliance Production: This technology is utilized in the manufacturing of washing machines, refrigerators, and other home appliances to boost automation levels on the production lines.

Advantages

Enhance Efficiency: Drastically elevate production speed and shorten the production cycle.

Minimize Labor Costs: Decrease reliance on manual labor and alleviate worker fatigue.

Ensure Consistency: Guarantee uniform tightening quality for every screw, minimizing errors attributed to human factors.

Specfication
